- UHMW components used for smooth tracking
- 15 degrees +/- of preloaded Pan; 15 degrees +/- of preloaded Cant
- Preload on Pan and Cant can be tightened by means of the knurled knob
- Construction from T6061 Aluminum, Hard Anodized black; Stainless steel springs and fasteners
- Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ADM 170-S lever mount
- Non orientated leg positioning use either hand to move leg into any of the four leg positions
- Leg positions are stowed back, 90 degrees straight down, 45 degrees forward and stowed forward
- Standard soft durable Rubber feet that are suitable for many surfaces
- Non orientated leg length adjustment, Outer leg slides on the Inner leg locating on any of five positions 3/4" apart and can be done by either hand
- Estimated range of elevation on the BT47 is 7-13" from the surface up to the rail

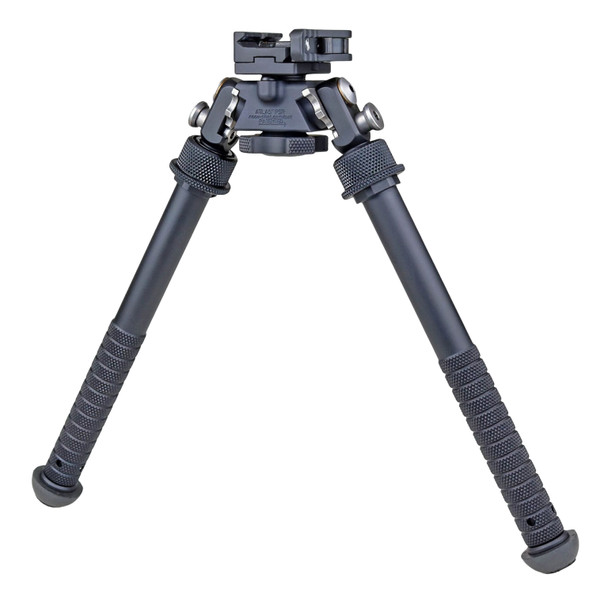

The BT47-LW17 PSR (Precision Sniper Rifle) Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever. It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. The PSR series of Atlas Bipods were developed for the SOCOM PSR (Precision Sniper Rifle) Weapons System (BT46-LW17 was selected for SOCOM PSR). Available in black only.
Warranty Information
- LW17: Lever Mount With ARMS 17S Mount
- Range of Elevation: 7" – 13"
- Preloaded Pan: 15 degrees +/-; Preloaded Cant: 15 degrees +/-
- Preload on Pan and Cant can be tightened by means of the knurled knob
- Fore and Aft pivot limiting Bosses
- 5 leg positions: 0, 45, 90, 135 and 180 degrees
- Non-Rotating Legs: outer leg does not rotate around inner leg
- Larger, stronger inner legs
- Weight: 15.13 ounces
- Footprint: 10 – 14.5"
- Optional mounting systems available for Accuracy International and Sako rifles
