ASK AN EXPERTDescription
- Compact, rugged design
- Waterproof
- Head or helmet-mountable for hands-free operation
- Ergonomic, simple, easy-to-operate controls
- Built-in Infrared illuminator and flood lens

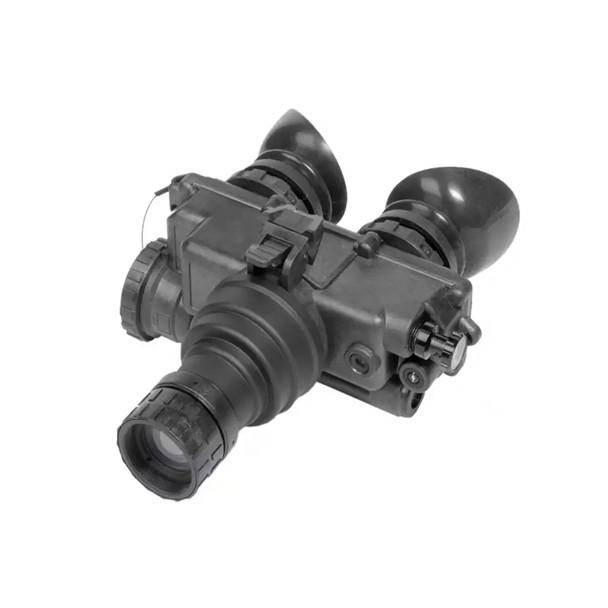

The AGM GLOBAL VISION PVS-7 3AW1 Night Vision Goggle is widely recognized for its unsurpassed dependability and ergonomic design. This U.S. Military-grade night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality AN/PVS-7 B/D system on the market. The PVS-7 can be outfitted with high-performance Gen 2+ and Gen 3 image intensifier tubes (available in Green phosphor or P45 white phosphor).
The PVS-7 is equipped with Automatic Brightness Control (ABC) to adjust image brightness in changing light conditions to maintain image definition and clarity. The built-in infrared illuminator provides a light source beyond the visible spectrum to enable the user to operate in complete darkness without being detected.
Additionally, the PVS-7 has a bright light cut-off feature to protect the image tube from sources of intense light, and a flip-up shut-off feature that can be used with the optional helmet mount system. The PVS-7 has two LED indicators in the eyepiece for the IR illuminator on and low battery indicator. Lightweight, tough, and versatile, the PVS-7 can be handheld, or mounted to the user's head/helmet. It is compatible with afocal magnifier lenses for superior long-range viewing.
Warranty Information
| Image Intensifier Tube | Gen 3 Auto-Gated "White Phosphor Level 1" |
| Resolution | 64-72 lp/mm |
| Field of view cleanness by zone | Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1 |
| Magnification | 1x |
| Lens System | 27 mm; F/1.2 |
| FOV | 40° |
| Focus Range | 0.2 m to infinity |
| Diopter Adjustment | -6 to +2 diopters |
| Led Indicators | Low battery; IR On; Excessive light conditions |
| Automatic Brightness Control | Yes |
| Infrared Illuminator | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Battery Type | 2 AA Alkaline or 1 Lithium (BA-5567/ U) |
| Battery Life (Operating) | Up to 60 hours at 20°C |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +70°C (-58°F to +158°F) |
| Overall Dimensions, in | 6.4" x 6.0" x 3.0" |
| Weight (Without Batteries), lb | 1.1 |
| Package Includes | Head Mount Assembly, Medium & Thick Brow Pads, Eye Cups, Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Sacrificial Window, Demist Shields, Operator's Manual |
