- Redundant dual-tube design
- True stereoscopic vision
- Lightweight & compact
- Waterproof
- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery

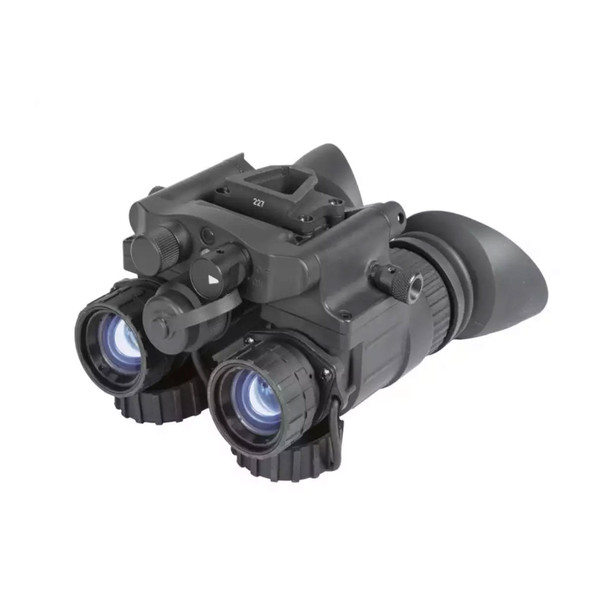

The AGM NVG-40 3APW Dual Tube Night Vision Goggle/Binocular is a dual-channel night vision system. The NVG is made of a compact composite housing for durability, and features advanced multi-coated optics. The device can be outfitted with either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected.
The NVG is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
Warranty Information
| Image Intensifier Tube | Gen 3 Auto-Gated "White Phosphor 3APW" |
| Resolution | 64-72 lp/mm |
| Field of view cleanness by zone | Gen 3 IIT 3APW is offered with high quality and practically no visible spots in Zone 1 |
| Magnification | 1x |
| Lens System | 27mm; F/1.3 |
| FOV | 40° |
| Focus Range | 0.25 m to infinity |
| Eye Relief, mm | 25 |
| Diopter Adjustment | -6 to +2 dpt |
| Led Indicators | Low Battery IR On Excessive Light Conditions |
| Infrared Illuminator | Yes |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Battery Type | One CR123A (3V) or AA (1.5 V) |
| Battery Life (Operating) | Up to 20 hours at 20°C (up to 80 hrs with optional battery pack) |
| Waterproof | Yes |
| Operating Temperature Range | -40° C to +50° C (-40° F to +122° F) |
| Storage Temperature Range | -50° C to +70° C (-58° F to +158° F) |
| Weight | 645 g (1.42 lbs) |
| Dimensions, in | 4.5" x 4.6" x 2.9" |
| Package Includes | Night Vision Goggles, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual |
| Protection Level | IP67 |
