- 16" 4150 CrMov Barrel
- A2 Flash Hider
- Carbine Length Gas System
- Flat-Top Optic Ready Receiver with Picatinny Rail
- Forged 7075-T6 Aluminum Upper and Lower Receiver
- 10" Free Float Quad Rail
- Shot-Peened Mil-Spec 8620 Bolt Carrier
- Mil-Spec Trigger
- Mil-Spec Pistol Grip
- ATI Mil-Spec 6-Position Stock

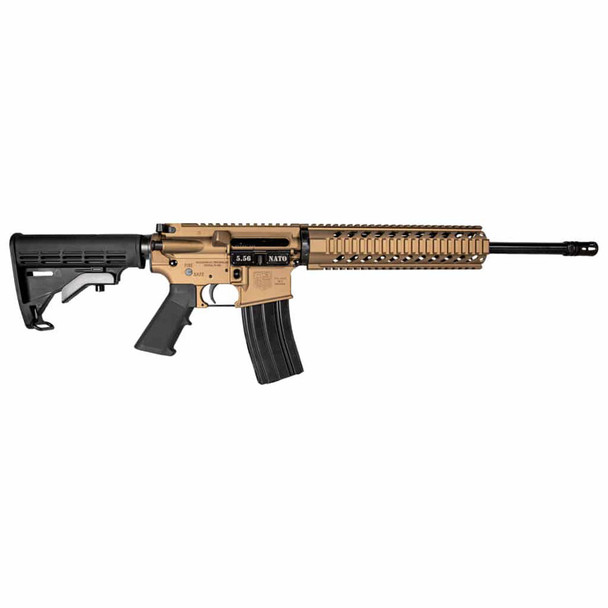

The DIAMONDBACK DB15 5.56mm NATO Semi-Automatic Rifle (DB15CCBBV2) is an affordable lightweight general purpose AR pattern rifle with a 16" barrel, A2 flash-hider, 10" Free Float Quad Rail, and flat-top optic ready upper.
The DB15 is ready to accessorize to any configuration you want. The upper and lower are forged from 7075-T6 aluminum. The Mil-Spec 8620 Bolt Carrier is shot-peened for a durable surface finish and then Magnetic Particle Inspected to ensure quality.
A mil-spec trigger and pistol grip are standard on the DB15CCBV2. Length of pull can adjusted with the ATI Mil-Spec 6-position stock. This is the perfect rifle for home defense, duty use, or entry into competition.
Warranty Information
| Caliber | 5.56 NATO |
| Barrel | Diamondback Barrels 5.56, Carbine Length, 16 in., Medium, 4150 CrMov, Black Nitride |
| Twist | 1:8 RH |
| Gas System | Carbine-Length |
| BCG | Shot-Peened, Magnetic Particle Inspected Mil-Spec 8620 Carrier |
| Upper | A3 Flattop Forged 7075 T-6 Aluminum |
| Lower | Forged 7075 T-6 Aluminum [Diamondback Standard] |
| Handguard | Standard 2-Piece Black Plastic |
| Grip | A2 Style Black Plastic |
| Stock/Brace | 6-Position ATI Mil-Spec Buttstock |
| Magazine | 30 Rnd CPD |
| Sights | None |
| Muzzle Device | A2 Flash Hider |
| Trigger | Standard |
| Weight, lb | 6.35 |
| Length (Collapsed), in | 32 3/4" |
| Length (Extended), in | 36" |
