ASK AN EXPERTDescription

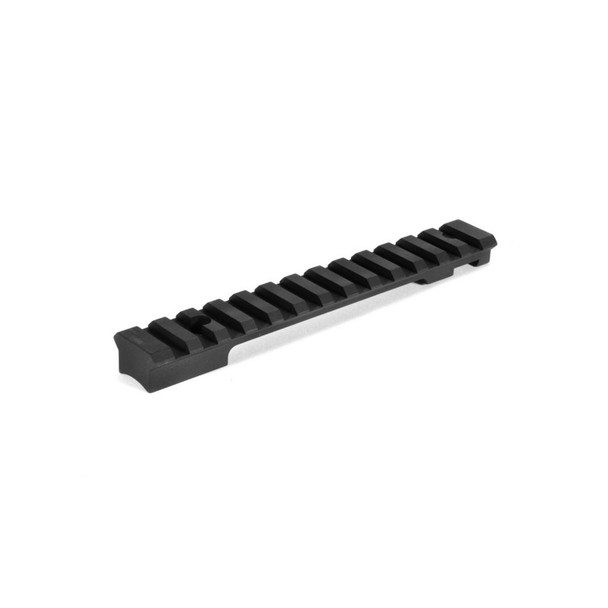

- One-piece Picatinny rail
- Fits Springfield 03A3, Remington 03A3, Springfield 03A4
- Compatible with Picatinny or Weaver scope rings
- Utilizes the dovetail as the recoil shoulder
- Machined from solid 7075 T6 Aircraft Grade Aluminum
- Tumbled, sand blasted, and Type lll anodized for long-lasting durability
- Mounting hardware is included
The Evolution Gun Works Scope Mount features Picatinny cross slots that run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct the usage of factory iron sights. The Evolution Gun Works one-piece scope mounts are the obvious choice for hunters and tactical shooters.
It is recommended to measure the hole spacing in your receiver to confirm it matches the dimensions of the mount.
Installation: Evolution Gun Works recommends 20 inch lbs of torque and a drip of blue loctite (loctite is sold separately).
0 MOA - if shooting 0-500 yards
20 MOA - if shooting 500-1000 yards
When zeroing your rifle with a 20 MOA mount, Evolution Gun Works recommends zeroing at 200 yards.
Videos
View AllClose
Warranty Information
| Rail Type | One Piece Picatinny |
| Material | Machined From Solid 7075 T6 Aircraft Grade Aluminum |
| Finish | Matte Black Hardcoat |
| Center Spread | 4.1" |
| Overall Length | 5.488" |
| Height | .35" (Top of Receiver to Top of Picatinny) |
| Weight | 2.5 oz |
| Quick Disconnect Ring Compatible | Yes |
| Torque Specs | 20 in/lbs |
| Mounting Hardware | Socket Head Torx Screws and Wrench Provided. Includes 2 screws. One 8-40 x 1/4" screw for the front and one 8-40 x 1/4" screw for the rear |
