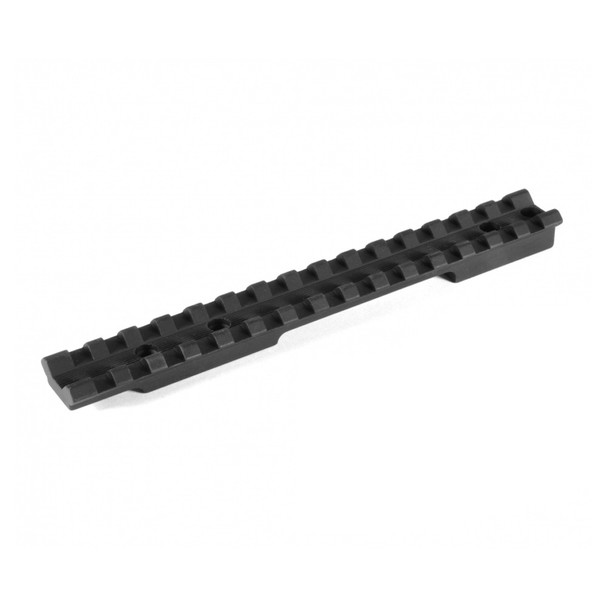

- Fits Short Action Remington 700 rifles, as well as the 722 and 40x
- Machined from Domestic 6061 T6 Extruded Aluminum
- Mounting Hardware: Hex head screws and wrench provided
- Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories
- The channel in the center reduces the overall mass of the mount
- Picatinny-style base and compatible with Picatinny or Weaver scope rings
- Matte Black Finish
- Comes with a bevel on both sides that making it ambidextrous
This mount fits:
Remington 700 Short Action
Remington 722 Short Action
Remington 40X Short Action
Bergara B14 (#6 Screws)
Christensen Arms Short Action
Mauser M18
This base also fits the Bergara B-14 rilfes (#6 screws), Christensen arms short actions, and Remington 700 Ultimate Muzzleloaders.
Specs:
Center Spread: 3.627"
Overall Length: 6.276"
Height: .4"
The Bergara Premier requires the base to be drilled out for #8 screws.
This mount comes standard with a bevel on both sides making it ambidextrous.
The bolt pattern on our Remington 700 Short Action mount fits Short Action Remington 700 rifles (example 223, 308), as well as the 722 and 40x.
Despite what you may have heard, the Remington 700 mount will NOT fit your Howa 1500 or Weatherby Vanguard.
The bolt pattern is similar, but the remainder of the mount (ejection port, length, etc.) renders it useless on these two guns.
The middle spread is the distance between the two middle holes, center to center, on your receiver.
20 MOA is recommended if shooting 500-1000 yards. When zeroing your rifle with a 20 MOA mount, we recommend zeroing at 200 yards.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories.
The channel in the center reduces the overall mass of the mount, weighing in at 2-3oz on average. Also, in many cases, it will not obstruct usage of factory iron sights.
EGW’s one piece scope mounts are the obvious choice for hunters and tactical shooters alike.
Add EGW’s Practical or HD Scope Rings to make it a complete overhaul!
Installation:
EGW recommends 20 inch lbs of torque and a drip of blue loctite (loctite is sold separately).
Remington 700 Short Action
Remington 722 Short Action
Remington 40X Short Action
Bergara B14 (#6 Screws)
Christensen Arms Short Action
Mauser M18
This base also fits the Bergara B-14 rilfes (#6 screws), Christensen arms short actions, and Remington 700 Ultimate Muzzleloaders.
Specs:
Center Spread: 3.627"
Overall Length: 6.276"
Height: .4"
The Bergara Premier requires the base to be drilled out for #8 screws.
This mount comes standard with a bevel on both sides making it ambidextrous.
The bolt pattern on our Remington 700 Short Action mount fits Short Action Remington 700 rifles (example 223, 308), as well as the 722 and 40x.
Despite what you may have heard, the Remington 700 mount will NOT fit your Howa 1500 or Weatherby Vanguard.
The bolt pattern is similar, but the remainder of the mount (ejection port, length, etc.) renders it useless on these two guns.
The middle spread is the distance between the two middle holes, center to center, on your receiver.
20 MOA is recommended if shooting 500-1000 yards. When zeroing your rifle with a 20 MOA mount, we recommend zeroing at 200 yards.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories.
The channel in the center reduces the overall mass of the mount, weighing in at 2-3oz on average. Also, in many cases, it will not obstruct usage of factory iron sights.
EGW’s one piece scope mounts are the obvious choice for hunters and tactical shooters alike.
Add EGW’s Practical or HD Scope Rings to make it a complete overhaul!
Installation:
EGW recommends 20 inch lbs of torque and a drip of blue loctite (loctite is sold separately).
Warranty Information
| Center Spread, in | 3.627" |
| Overall Length, in | 6.276" |
| Height, in | 0.4" |
| Forward Cant | 20 MOA |
