ASK AN EXPERTDescription
- One Piece Picatinny Rail
- Domestic 6061 T6 Extruded Aluminum Construction
- Matte Black Anodized Finish
- #6-48 X 1/4 Screws and T-10 Wrench Included

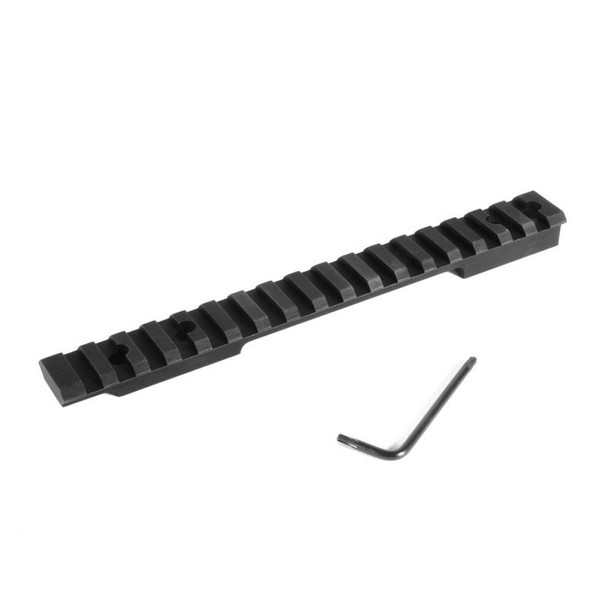

The EVOLUTION GUN WORKS Picatinny Rail Scope Mount For HD Weatherby Mark V (9 Lug Bolt) is made specific to the gun. Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. EGW's one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
Videos
View AllClose
Warranty Information
| Fits | Weatherby Mk V (Mark 5) 9 Lug Bolt |
| Typically in Calibers | .257 WBY Mag .270 WBY Mag 7mm WBY Mag 6.5-.300 WBY Mag .300 WBY Mag .340 WBY Mag .375 WBY Mag .30-.378 WBY Mag .338-.378 WBY Mag .416 WBY Mag .460 WBY Mag .300 Win Mag .338 Lapua .375 H&H |
| Minute Of Angle (MOA) | 20 MOA |
| Center Spread, in | 4.485" |
| Overall Length, in | 7.064" |
| Height, in | .35" (Top of Receiver to Top of Picatinny) |
| Weight, oz | 2.5 |
| Quick Disconnect Ring Compatible | Yes |
| Ambidextrous | Yes |
| Torque Specs | 20 in/lbs |
