Description
- Average battery life at brightness level 12 is roughly 600 hours
- 68MOA circle with quadrant ticks with (2) 1 MOA aiming dots
- Single transverse 123 battery to reduce sight length
- Night Vision Compatible

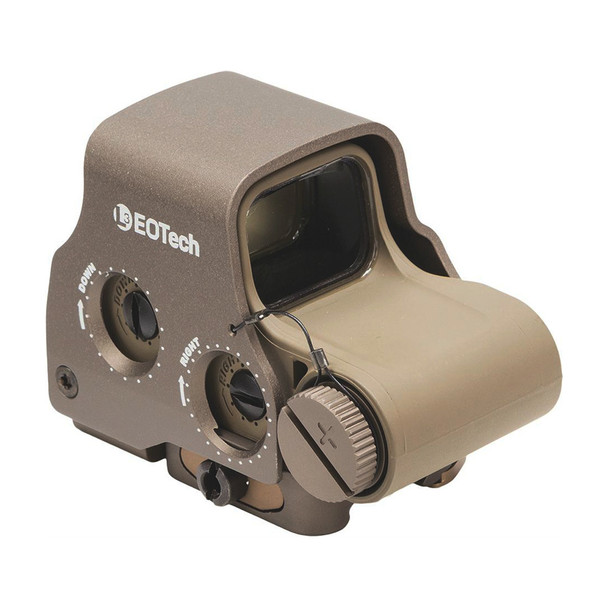

By popular demand, the EOTech EXPS3-2 Holographic Sight, NV Compatible, 65 MOA ring and (2) 1 MOA dots Reticle, Tan (EXPS3-2TAN) is now offered in flat dark earth (FDE). The EXPS is the ultimate CQB optic and perfect for all of the new modular rifle designs offered in this color scheme.
Offering true 2 eyes open shooting, a transversly mounted lithium 123 battery, and 7 mm raised base offering iron sight access, the Extreme-XPS (Eotech EXPS) features easy to adjust side buttons and a single, quick release throw lever for easy attachment and removal.
The illuminated ring-dots reticle offers 30 brightness levels to choose from, 10 of which are compatible with night vision gear. The battery compartment was completely redesigned to accommodate a single CR123A battery - an easy to open cover is held in place by a tethered o-ring, and the compartment is elevated so it hovers over the Delta Ring.
Designed for today's modern battlefield, the Eotech Sight EXPS3-2 is submersible to a depth of 33 feet, and the 1" Weaver or (MIL-STD-1913) mount is repeatable to 2 MOA after re-mounting. The rear window is a 3/16" thick shatterproof laminate with anti-glare and scratch resistant coatings, and the front lens is 1/8" solid glass. Because the optical system is based upon transmission holography, parallax error is not an issue - this is an excellent feature that can save your hams when the mayonnaise hits the fan.
WARNING: The HWS Model EXPS is controlled under the Export Administration Regulations (EAR) ECCN 0A987, and may not be exported to a Foreign Person, either in the U.S. or abroad, without a license or exception from the U.S. Department of Commerce.
Warranty Information
Operation | |
Optics | Transmission holography |
Magnification | 1x |
Eye Relief | Unlimited |
Size (L x W x H), in | 3.8" x 2.3" x 2.9" |
Weight, | 11.2 |
Water Resistant | Submersible to 33 ft (10m) |
Sealing | Fog resistant internal optics |
Color/Finish | Tan |
Adjustment (per Click), in @ 100yds | 1/2" (0.5 MOA) |
Adjustment Range | +/- 40 MOA travel |
Mount | 1" Weaver or MIL-STD 1913 rail |
Display Window | |
Optical Surfaces | Anti-Reflection coating on external surfaces |
Window Dimensions, in. | 1.20" x 0.85" |
Front Window Material | Glass 1/8" (3.17mm) thick |
Rear Window Material | Laminate 3/16" (4.76mm) thick |
Field of View 100 yds | 30 yds (28m) at a 3" eye relief |
Reticle Options | 68MOA circle with quadrant ticks with (2) 1 MOA aiming dots |
Electrical | |
Power Source | One (1) 123 lithium battery |
Battery Life | 600 hrs |
Brightness Settings | 30 settings with scrolling feature (10 settings for NV use) |
Auto Battery Check Indicator | Flashing reticle upon start-up |
Auto Shut-down | At 8 hrs- programmable to 4 hrs |
