- Holographic Hybrid Sight includes EXSP3-4 sight with G45 Magnifier

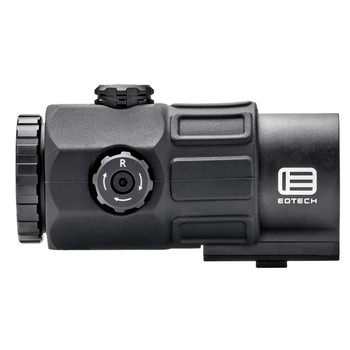

- Change quickly from close quarter to medium range targets with the included G45 Magnifier with Quick Disconnect and a Switch-to-Side mount
- Works with all Gen 1-3 night vision devices
- Compact design and side button operation consumes minimal rail space and is ideal for use with a G33 Magnifier
- Wide field optical performance for visibility in extreme low-light conditions
- Eotech reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target

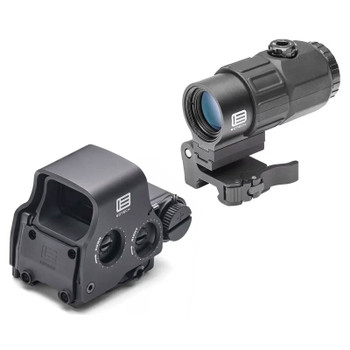

The Holographic Hybrid Sight V (HHS V), featuring a EXPS3-4 with a G45 magnifier combination is the perfect solution for Close-Quarters Combat situations as well as 600-meter targets. Instant transition is achieved through a Switch-To-Side (STS) mount that offers a simple and quick disengagement of the magnifier. This durable night vision-compatible system offers wide field optical performance for visibility in extreme low-light conditions.
Eotech's unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. Eotech reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.
Use this ballistic reticle with 5.56 NATO/.223 Cal with 62gr M855 FMJ at roughly 2680 fps with a 14.5" barrel. For ordering this reticle, the model codes will end in -4. Aiming dots on the 4-dot reticle may not be distinguishable without magnification.
Warranty Information
| Fixed Magnification | 5x |
| Eye Relief, in | 2.6" |
| Field-of-View with Magnifier, deg | 4.4° |
| Sealing | Fog resistant internal optics |
| Water Resistant | 33ft. (10 m) depth |
| Mount | 1" Weaver or MIL-STD-1913 rail |
| Windage/Elevation Adjustment | 0.5 MOA per click |
| Brightness | 20 daylight settings 10 additional settings for Gen I through III+ night vision devices |
| Power Source | 1x CR123 battery |
| Battery Life | 1000 continuous hours at nominal setting 12 at room temperature |
| Size, in | 7.7" x 2.3" x 3.3" |
| Weight, oz | 24 |
| In Box | HHS V (EXPS3-4 and G45.STS) Quick-Start Guide Warranty and Registration Card CR123 Battery Protective Case |
