- Throw lever
- Reticle manual
- Operator manual
- Lens cleaning cloth
- First focal plane design

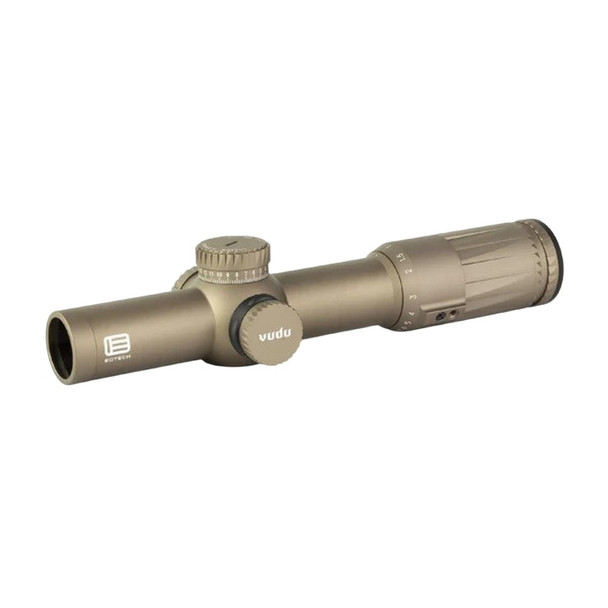

The EOTech Vudu 1-10x28 FFP Rifle Scope offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.
The SR-4 incorporates the iconic EOTech illuminated speed ring along with a hashmarked inner crosshair reticle that uses MOA subtension lines for ranging holdover and wind compensation. With a 1MOA center aiming dot, the clean sight picture provides improved down range visibility while still allowing the full use of the horizontal and vertical stadia lines for hold-overs and wind calls.
Warranty Information
| Magnification | 1-10x |
| Tube Diameter, mm | 34 |
| Objective Diameter, mm | 28 |
| Power Source | CR2032 |
| Adjustment Graduation Per Click | 0.25 MOA |
| Adjustment Graduation Per Rotation | 1-10x40 MOA |
| Total Elevation Travel | 100 MOA |
| Total Windage Travel | 80 MOA |
| Eye Relief | 1x: 3.27-3.90" (83-99mm) - 10x: 3.35-3.62" (85-92mm) |
| Field-of-View, @ 100 Yards | 1x: 116.6ft (35.5m) - 10x: 11.7ft (3.6m) |
| Overall Length, in | 10.63" |
| Weight, oz | 21.3 |
