- MK4 with Magpul M-LOK attachment system
- Picatinny rails sections at 3, 6, and 9 o'clock
- Free Floating
- Lightweight, Strong and Rigid

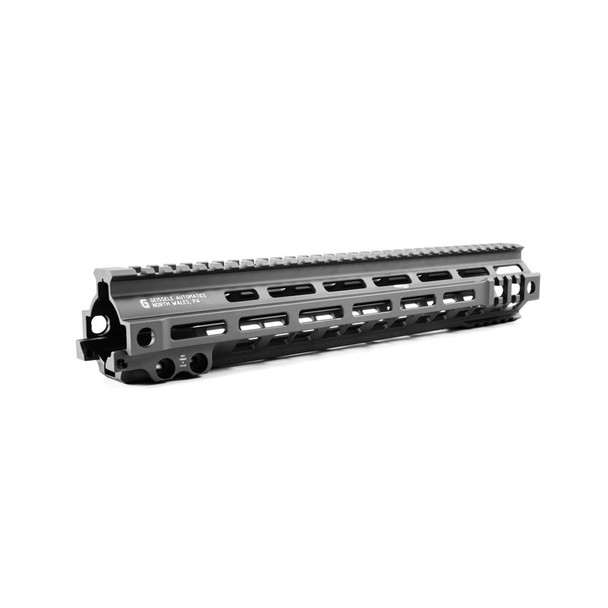

The GEISSELE AUTOMATICS Super Modular MK4 M-LOK Rail is Geissele's ultra-modular model. The SMR MK4 is one of the first rails available to utilize the Magpul M-LOK technology. These rails are designed to give the user full modularity while maintaining a strong and rigid platform. Maximum venting at the lower 45 degree quadrants create maximum heat dissipation and also dramatically reduces the rail's overall weight. Utilizing Magpul's M-LOK technology at the 3, 6, and 9 o'clock positions, as well as the upper 45 degree quadrants. The SMR MK4 is both versatile and modular, allowing the user to tailor their platform to his or her unique needs.
The SMR MK8 also features Geissele's proprietary 2.25" long barrel nut. This increases the surface contact where the rail interfaces with the receiver and creates a platform that can be trusted to be straight and true the entire length of the free float rail. This increases accuracy and zero repeatability during disassembly and reassembly when performing maintenance.
|Finish||Type 3 Hardcoat Anodize|
|Inner Diameter, in||1.35"|
|Outer Diameter, in||2.11"|
|SMR MK4 Weight, oz||11.8 (13.5 with barrel nut)/td>|
