- Exposed Locking Turrets
- 30mm Mono-Tube Chassis
- Wide Angle
- Side Focus
- Illumination
- 11 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
- Fast Focus Eyebell

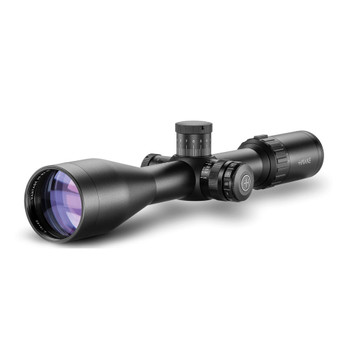

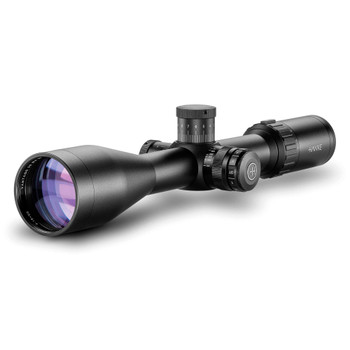

Enjoy a bright image even in lower-light conditions with the Hawke 4-16x50 Vantage 30 WA SF Rimfire Riflescope on your rifle. This optic's large objective lens admits a great deal of light, and its 11 layers of anti-reflection coatings on all lens surfaces deliver a sharp image with ample contrast.
Designated WA for its wide-angle field of view, the scope features a strong, single-piece 30mm maintube with 96 MOA of elevation and windage adjustment at 1/4 MOA per click for long-distance shots. The glass-etched .22 LR Subsonic reticle, sits in the second focal plane and features aim points precalculated for your caliber.
A side focus control allows you to correct for parallax from 10 yards to infinity. The aluminum housing is purged with nitrogen and sealed for waterproof and fogproof performance.
Warranty Information
| Magnification | 4-16x |
| Objective Diameter, mm | 50 |
| Field of View, ft @ 100yds | 28.8-7.8 |
| Angular Field of View, deg | 5.5-1.5° |
| Eye Relief, in | 3.5" |
| Exit Pupil, in | 0.49-0.12" |
| Parallax | Side Focus |
| Optical System | System H2 |
| Scope Tube, mm | 30 |
| PX/Focus | 10 yds to infinity |
| Turret Caps | N/A |
| Click Value | 1/4 MOA |
| Elevation Turret Clicks (max) | 96 MOA |
| Windage Turret Clicks (max) | 96 MOA |
| Reticle | Rimfire .17 HMR Reticle (16x) |
| Illumination | 5 Levels - Red/Green |
| Ocular Type | Fast Focus |
| Power Selector | Knurled Posi-Grip |
| Lens Coating | Fully Multi-Coated - 11 Layers |
| Focal Plane | SFP (Second Focal Plane) |
| Length, in | 13.7" |
| Weight, oz | 26.1 |
