ASK AN EXPERTDescription
- 1 inch mono-tube chassis for superior strength
- 11 layer fully multi-coated optics for excellent clarity
- Rimfire .22 WMR
- Capped Low-Profile Turrets
- Glass etched reticle with red and green illumination
- Rheostat on saddle offers 5 levels of brightness
- Fast focus eyebell and high torque zoom ring
- Waterproof, Shockproof, Nitrogen purged
- Hawke Worldwide Warranty

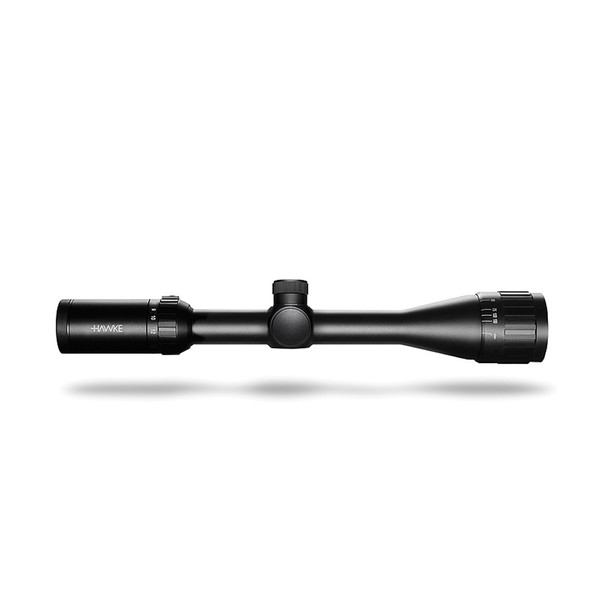

Designed for mid to long-range use, the Hawke Optics 4-12x40 Vantage AO IR Riflescope boasts the Rimfire .22 WMR Reticle with five selectable brightness levels for use in most lighting conditions in either red or green. Red is ideal for low-light conditions, while green is easier to see in brighter ambient light or when using NVDs in extreme low-light or complete dark. The 40mm objective draws in copious amounts of light versus smaller objectives while maintaining a low profile. Covered turrets help guard against accidental adjustments. Complementing the performance of the scope is a lightweight and durable housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof.
Warranty Information
- Scope Tube: 1 Inch
- Magnification: 4 - 12x
- Objective Lens: 40mm
- Reticle: Rimfire .22 WMR
- Illumination: 5 Levels (Red & Green)
- Illumination Control: Stepped Rheostat
- Parallax: Adjustable Objective
- Focal Plane: SFP (Second Focal Plane)
- Lens Coating: Fully Multi-Coated - 11 Layers
- Optical System: System H2
- Field of View: 26.2 - 8.7ft @100yds | 8.7 - 2.9m @100m
- Field of View (°): 5 - 1.7
- Eye Relief: 3.5in | 90mm
- PX/Focus (Error free from): 10yds - ∞ | 9m - ∞
- Click Value: 1⁄ 4MOA
- Exit Pupil: 0.39 - 0.13″ | 10 - 3.3mm
- Turret Type (Elevation): Capped, Low-Profile, Resettable
- Elevation Turret Clicks (max): 80 MOA
- Turret Type (Windage): Capped, Low-Profile, Resettable
- Windage Turret Clicks (max): 80 MOA
- Ocular Type: Fast Focus
- Power Selector: Knurled Posi-Grip
- Length: 13.6in | 346mm
- Weight: 18.1oz | 513g
