ASK AN EXPERTDescription
- Red dot sight with thermal overlay
- 256x192 thermal sensor
- Three reticle options
- Five thermal image color palettes
- 1024x768, 50 fps display resolution
- 8x digital magnification
- IP67 waterproof
- 8 day, 4 night vision brightness levels
- Uses two 18350 batteries
- Takes photos and video

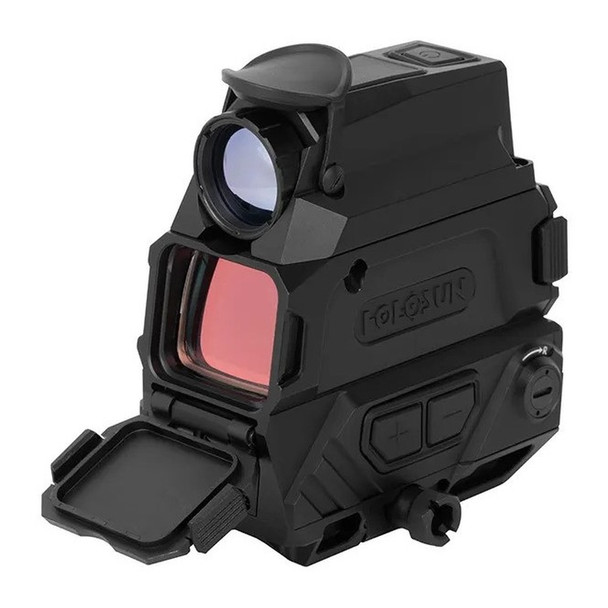

The Digital Reflex Thermal Sight is a red dot and thermal fusion optic that combines Holosun's red dot sight technology with thermal imaging capability. It features an LED MRS (Multi-Reticle System) and digital reticle options (for use with the thermal overlay), 1024x768 resolution display at 50fps, and 1x, 3x, 5x digital zoom.
Images and video can be captured on the fly and stored on 32GB of on-board storage. It is powered by two 18350 rechargeable batteries which provide up to 10 hours of battery life and features an onboard magnetic connection enabling battery charging and downloading of recorded images and video via USB. DRS-TH models feature five thermal image modes including White Hot, Highlight and Outline modes.
Warranty Information
| Reticle | 65 MOA Circle-Dot, 2 MOA Dot and 65 MOA Circle |
| Reticle Color | Red |
| Power Source | 2x18350 |
| Runtime | 20 Hours |
| Sight Window Dimensions, in | 1.25"x1" |
| Quick Release | No |
| Finish | Anodized |
| Magnification | 8x |
| Environmental Protection | Dust/Water-Resistant (IP67) |
| Video Record Resolution | 1024x768 pixels |
| Refresh Rate | 50Hz |
| Resolution | 256x192 pixels |
| Dimension (LxWxH), in | 3.5"x2.2"x3.7" |
| Weight, oz | 18.5 |
