ASK AN EXPERTDescription
- Collimated Red Laser Pointer
- Remote Cable Switch
- Quick Release Mount
- IP67 Waterproof

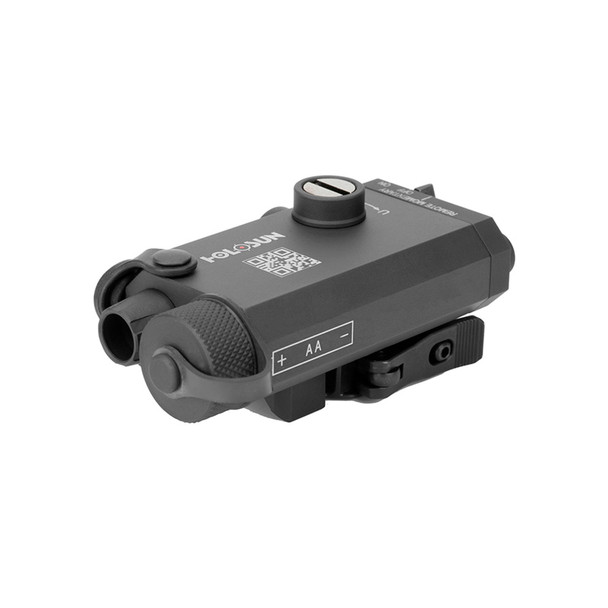

The HOLOSUN Laser Red (LS117R) is a 7075 Aluminum bodied class IIIA visible red laser aiming device. Features include a quick release picatinny rail mount, remote pressure switch, and IP67 water resistance.
Warranty Information
| ELECTRONIC DATA | |
| Power Source | Battery |
| Battery | AA |
| Battery Life, Hours | Up to Modes |
| Brightness Setting | Up to Modes |
| MECHANICAL DATA | |
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | 0.5 MOA |
| Finish | Textured |
| W&E Travel Range | ±50 MOA |
| LASER DATA | |
| Laser & Illuminator Type | Single Laser |
| White LED Output | N/A |
| IR Illuminator Class | N/A |
| IR Illuminator Output | 0.7mw |
| IR Pointer Class | N/A |
| IR Pointer Output | 0.1mw (low) / 0.7mw (high) |
| Visible Laser Class | IIIA |
| Visible Laser Output | 1mw (low) / 5mw (high) |
| PHYSICAL DATA | |
| Dimensions, in | 3" x 15" x 13" |
| Weight, oz | 4.9 |
| ENVIRONMENT DATA | |
| Storage Temperature | -40 °C~65 °C |
| Working Temperature | -40 °C~51 °C |
| Submersion | IP67 |
| Vibration | 1000G |
| IN THE BOX | |
| QD Release Mount T10 L Key AA Battery Remote Cable Switch User Manual |
|
