Description
- L.E. Wilson Inc. a family owned and operated business since 1927. And the first to produce the Case Gage in 1935
- The "Wilson Case Gage" is a one piece gage that will check overall length and indicate min/max case length
- Measures min/max headspace. Does not measure body diameters
- This gage is intended to be used with fired cases to determine a basis for full length sizing and case trimming
- Made in the U.S.A
- Made of stainless steel
- Made in the U.S.A

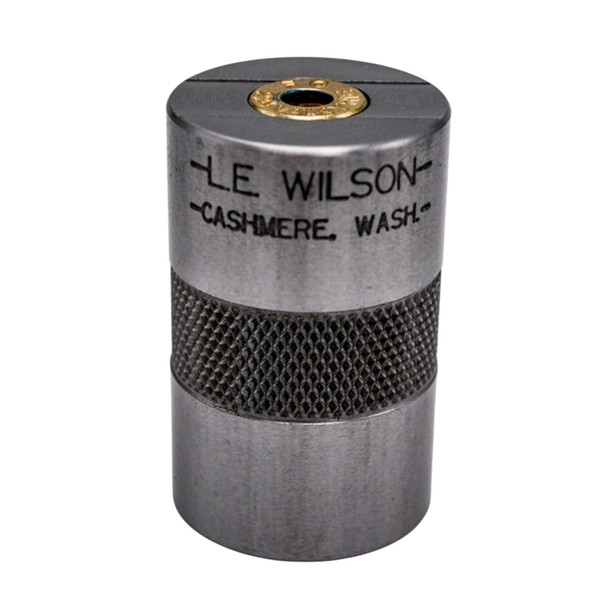

The L.E. Wilson Case Gage is a one-piece precision tool designed to check both case length and headspace in fired cases. Available for most popular rimless cases. The Cartridge Case Gage was designed with safety in mind and was invented by the founder Sam (L.E.) Wilson in 1935 after a fellow shooter approached him for help in solving a case-separation issue. This case gage allows you to see just how much you are sizing back your shoulder on your cases.
How to Use It:
Measure a case in AS-FIRED condition. Note the headspace measurement
Resize your case on the current die setting
Place the resized case back into the gage
Use a Case Gage Depth Micrometer to see how much you are sizing the shoulder back
Adjust your sizing die to achieve your desired shoulder set back
Recheck the case length - trim if case exceeds max length step
Why It's Essential:
Prevent over-sizing and case separation
Know exactly when brass needs trimming
Gain consistency in chamber fit and pressure control
Ideal for bolt action and precision shooters
Note: Does not measure body diameters. This gage is intended to be used with fired cases to determine a basis for full length sizing and trimming.
