- Waterproof & Fogproof - Absolute waterproof and fogproof integrity means it's ready to perform in the field, in all conditions
- M5C3 ZeroLock Adjustments - Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock feature prevents inadvertent adjustments and ensures accurate return to zero
- Professional-Grade Optical System - industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field
- ZeroLock Dial - The ZeroLock system eliminates accidental dial movement by locking it in place and allows for repeatable returns to zero
- Zero Stop - The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction
- Front Focal Plane (FFP) - The reticle magnifies along with the image, so you can estimate range at all magnification settings. These reticles are ideal in tactical situations, yet also provide greater accuracy of range estimation for hunters and target shooters
- Side Focus - Side focus parallax adjustment for fast, easy parallax focusing from any shooting position
- 5:1 Zoom Ratio - Versatile magnification range offers a wide field of view at low power and precise target identification at high power

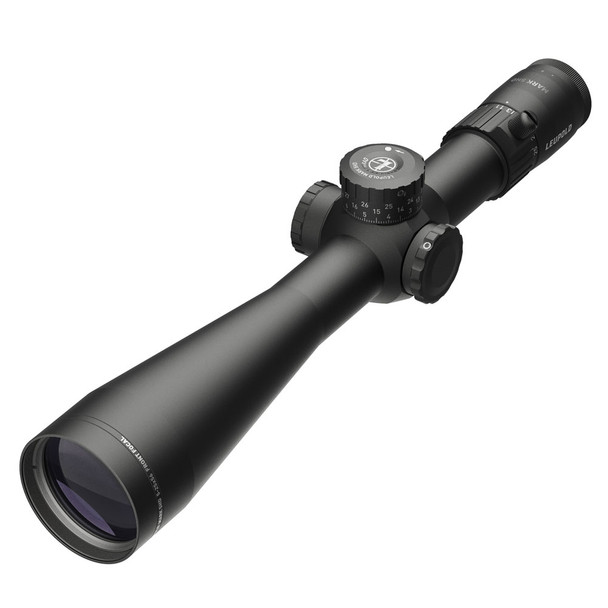

Pick up a Mark 5HD 5-25x56mm and you'll feel the difference. It's up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 5-25x magnification lets you dominate midrange shots, while also giving you the flexibility to reach out to long distances. With three revolutions of elevation adjustment and multiple reticle options, this scope will max out the performance of the latest long-range rifles and ammunition, guaranteed.
Built around Leupold’s Professional-Grade Optical System, the Mark 5HD offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter. Ergonomically designed with more tactile and audible click adjustments, larger numbers, and a high-speed throw lever, the Mark 5HD is built to put accurate fire downrange faster.
The unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It's 100% waterproof and fogproof, and like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.
Warranty Information
| description | mark 5hd 5-25x56mm | mark 5hd 5-25x56mm | mark 5hd 5-25x56mm | mark 5hd 5-25x56mm |
| model number | 171772 | 171777 | 171773 | 171775 |
| reticle | front focal tmr | illum. front focal tremor 3 | front focal cch | illum. front focal tremor 3 |
| finish | matte | matte | matte | matte |
| illumination | no | yes | no | no |
| focal plane | front focal | front focal | front focal | front focal |
| dial/turret | m5c3 | m5c3 | m5c3 | m5c3 |
| weight (oz) | 30 | 30 | 30 | 30 |
| length (in) | 15.67 | 15.67 | 15.67 | 15.67 |
| linear fov (ft/100yd) - low | 20.5 | 20.5 | 20.5 | 20.5 |
| linear fov (ft/100yd) - high | 4.2 | 4.2 | 4.2 | 4.2 |
| eye relief (in) - low | 3.58 | 3.58 | 3.58 | 3.58 |
| eye relief (in) - high | 3.82 | 3.82 | 3.82 | 3.82 |
| objective diameter (mm) | 56 | 56 | 56 | 56 |
| elevation adjustment range (moa) | 120 | 120 | 120 | 120 |
| elevation adjustment range (mil) | 34.9 | 34.9 | 34.9 | 34.9 |
| windage adjustment range (moa) | 60 | 60 | 60 | 60 |
| windageadjustment range (mil) | 23.8 | 23.8 | 23.8 | 23.8 |
