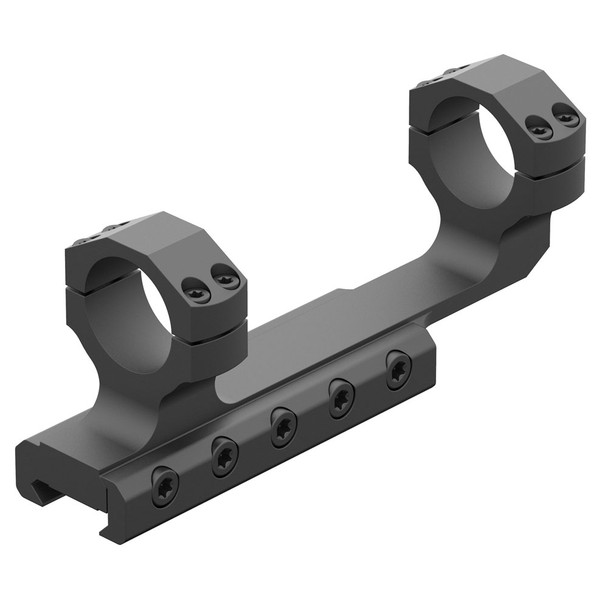

LEUPOLD Mark AR 30mm Matte Integral Scope Mount 177094
Leupold

LEUPOLD Mark AR 30mm Matte Integral Scope Mounting System (177094)

(Be the first to review the product) Write a Review
SKU:
LEU-177094
UPC:
030317022112
MPN:
177094
On Sale
  • LEUPOLD Mark AR 30mm Matte Integral Scope Mounting System (177094)
  • LEUPOLD Mark AR 30mm Matte Integral Scope Mounting System (177094)
  • LEUPOLD Mark AR 30mm Matte Integral Scope Mounting System (177094)
  • LEUPOLD Mark AR 30mm Matte Integral Scope Mounting System (177094)
  • LEUPOLD Mark AR 30mm Matte Integral Scope Mounting System (177094)
$70.99 $119.99
ASK AN EXPERT
Speak to one of our expertly trained specialists!
1-800-486-7497 ext 117

Description

  • Lightweight Aluminum Design
  • Dual Use
  • Punisher Tested and Verified
  • 30mm Tube Diameter
  • Matte Black Finish

There are two common issues when mounting scopes to platforms - getting the right scope height and the eye relief. The Leupold Mark solves both these problems while providing the most rock-solid mounting solution in the business. Combine that with ease of a one piece mount and you have the perfect match to that precision Leupold scope.

This mount features a 5 bolt design for a secure hold, 3 lugs on the bottom any kind of recoil, and a STANAG fit which means more contact area with the Picatinny rail for an exact fit.

View AllClose

Warranty Information

  Mark 30mm Mark 34mm Mark 35mm
Material Aluminum Aluminum Aluminum
Base Cant No No No
Base Configuration 1 Piece 1 Piece 1 Piece
Ring Diameter 30 mm  34 mm 35 mm
Ring Height (in) 1.4 1.5 1.5
Weight (oz) 5.8  6 5.9
Keeper Clamp Torque 65 in-lbs  65 in-lbs 65 in-lbs
Ring Top Screw Torque 28 in-lbs  28 in-lbs 28 in-lbs
Length (in) 5.43  5.43 5.43
Rear Offset (in) .68  .68 .68
Ring Depth (in) .65  .65 .65
Length Within Rings (in) 3.46  3.46 3.46
Keeper Length (in) 3.68  3.68 3.68
Front Offset (in) 1.75  1.75 1.75
Ring Width (in) 1.77  1.98 1.98
Ring Height (in) 1.4  1.5 1.5



View AllClose

Additional Information

Activity:
Shooting
Color:
Black
Finish:
Matte
Firearm Fit:
AR, M Rifles
Model:
Mark AR
Product Type:
Scope Mounts
Serialized Item:
F
Department:
Optics
On Sale:
On Sale Over 40% off
SALE:
On Sale
Material:
Aluminum
Bestselling:
F
In Store Pickup:
Yes
View AllClose
