- OLED displays use bright red characters and have adjustable brightness setting
- Flightpath technology uses your bow's ballistics to display the highest point of your arrow's flight, so you can take tighter shots with more confidence
- Line of Sight (LOS) calculates the distance to a target in a straight line, regardless of any incline or decline
- Selectable reticles ofers a variety of reticles to choose from to fit any use or preference

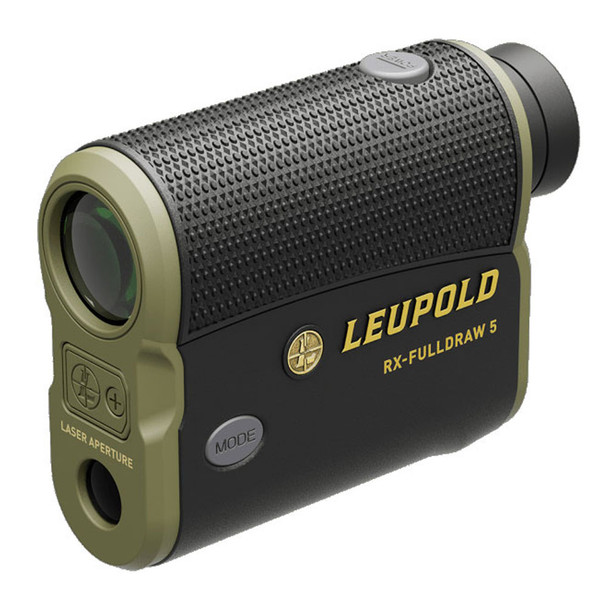

Built for the bowhunter and the competitive archer, the LEUPOLD RX-FullDraw 5 Rangefinder is the most ballistically advanced archery rangefinder on the market. Using your bowэs velocity, peep height, your arrow weight, and the angles of your shots, it calculates laser-accurate ranges based on your specific gear.
Now, the RX-FullDraw 5 accepts an even broader range of velocity inputs, allowing you to input numbers as low as 170 feet per second. So, no matter what you shoot, this rangefinder has you covered. And with the updated flightpath technology, you can choose between two modes for viewing arrow obstructions out to a typical distance of 85 yards. It even has a setting for ranging in bad weather. When thereэs moisture in the air, Last Target mode will punch through rain, fog, and snow to make sure you get an accurate reading.
Pair that with its six times magnification, bright red OLED display, and incredibly fast laser engine, and youэll see why this rangefinder is guaranteed to give you the advantage that youэve been looking for.
Warranty Information
| Magnification | 1-6x |
| Objective Lens Diameter, mm | 22 |
| Eye Relief, mm | 17 |
| Linear Field of View @1000 yds, ft | 315 |
| Angle Field of View, deg | 6° |
| Minimum Range, yds | 6 |
| Min Diopter, dpt | -3 |
| Max Diopter, dpt | +3 |
| Light Transmission, % | 85 |
| Battery Type | CR2 |
| Battery Life | 3000 activations |
| Accuracy to 125, yd | .5 |
| Accuracy to 1000, yd | 2 |
| Max Range - Deer, yd | 900 |
| Max Range - Trees, yd | 1100 |
| Max Range - Reflective, yd | 1200 |
| Min Range, yd | 6 |
| Width, in | 1.4" |
| Height, in | 3" |
| Length, in | 3.8" |
| Weight, oz | 7.5 |
