- 3:1 zoom ratio
- Leupold's Custom Dial System (CDS) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions
- The ZeroLock system eliminates accidental dial movement by locking it in place
- Aluminum offers excellent durability and ruggedness without adding unnecessary weight
- A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye
- Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection
- Waterproof, Fogproof and Shockproof

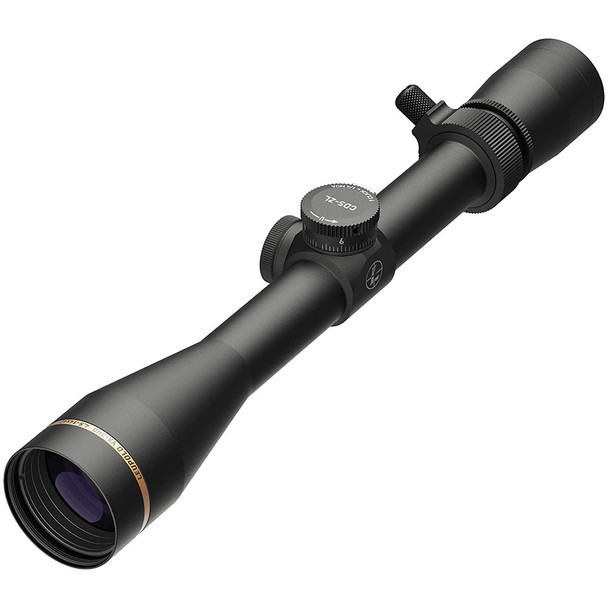

The VX-3HD 4.5-14x40mm delivers legendary performance and elite optical clarity in an incredibly tough, lightweight package. Its extremely popular magnification range is perfect for timber and western mountain hunting.
The VX-3HD delivers outstanding performance in low light. With Leupold's Elite Optical System, the VX-3HD delivers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand. Leupold also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves. The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS ZeroLock dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial, and then rotate it back to zero to lock it in place. It's that simple.
Everything Leupold put into your VX-3HD is there to help you tag out. Like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Warranty Information
| Magnification Max | 14 |
| Magnification Min | 4.5 |
| Objective Lens Diameter, mm | 40 |
| Linear FOV Low Mag @ 100yds, ft | 19.9 |
| Linear FOV High Mag @ 100yds, ft | 7.4 |
| Angular FOV Low Mag, Degrees | 3.8 |
| Angular FOV High Mag, Degrees | 1.4 |
| Eye Relief Low Mag, in | 4.4 |
| Eye Relief High Mag, in | 3.6 |
| Fixed Parallax-Free Distance, yd | 150 |
| Finish | Matte |
| Adjustable Objective | No |
| Side Focus | No |
| Reticle Focal Plane | Second Focal Plane |
| Elevation Adjustment Type | CDS-ZL |
| Zero Stop | Yes |
| Locking Dial | Yes |
| Revolution Indicator | No |
| Rezero Type | Set Screw |
| Windage Adjustment Type | Finger Click |
| Custom Dial Compatible | Yes |
| BDC Dial Included | No |
| Reticle | Duplex |
| Light Management System | Elite Optical System |
| Magnification Type | Variable |
| Illuminated | No |
| Nightvision Compatible Illumination | No |
| Daylight Bright Illumination | No |
| Motion Sensor Technology (MST) | No |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Weight, oz | 13.4 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range, MOA | 75 |
| Elevation Adjustment Range, MIL | 21.8 |
| Elevation Adjustment Range @ 100m, cm | 218.2 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | 14.5MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range, MOA | 75 |
| Windage Adjustment Range, MIL | 21.8 |
| Windage Adjustment Range @ 100m, cm | 218.2 |
| Windage Adjustment Per Revolution | 15 MOA |
| Compatible Accessories |
Alumina 40mm Flip Back Lens Cover 59045 Alumina Standard Flip Back Lens Cover 59055 Alumina 40mm EP Flip Lens Cover Kit 62990 Alumina 40mm 2.5in Lens Shade 56187 Alumina 40mm 4in Lens Shade 56190 Mark 4 40mm ARD Killflash 62880 Large Scope Cover 53576 |
