Description
- One piece 30mm tube for increase strength and reliability
- 4x zoom provides maximum range at the high end and true eyes-open situational awareness at low magnification
- Consistent eye relief and a generous eye box throughout the magnification range
- Low profile turrets / illumination controls are less likely to hang up or snag during movement
- Illuminated reticle with 5 Day/4 Low Light/2 NV levels
- Waterproof/fogproof/shockproof durable construction

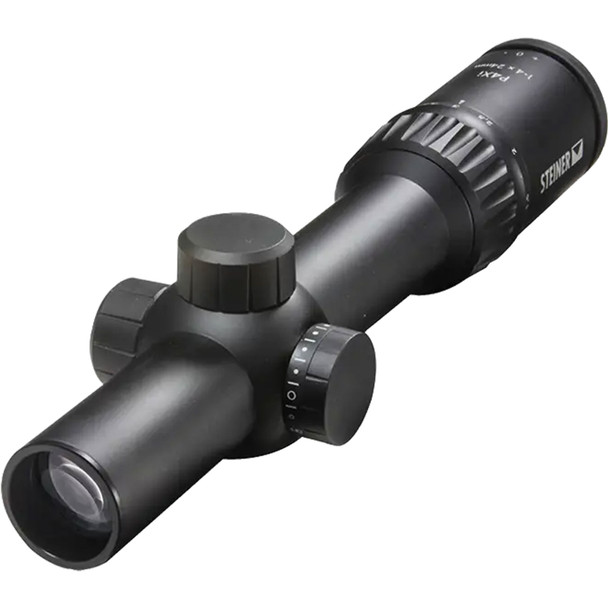

The new P4Xi riflescope is a compact, tactical optic that is ideal for patrol rifles. This scope features a proven and versatile 4x zoom system with a true 1x that is perfect for close-quarters engagements and 400-yard accuracy at the highest magnification. High-contrast optics deliver outstanding results under poor light conditions. Steiner's P3TR illuminated reticle is quick pointing and offers 11 levels of illumination for day or night operations.
| Magnification | 1-4x |
| Objective Lens, mm | 24 |
| Field of View @100 yds, ft | 110-27.5 |
| Eye Relief, in | 3.5"-4.0" |
| Exit Pupil, mm | 12-6 |
| Tube Diameter, mm | 30 |
| Focal Plane | 2nd |
| Reticle | P3TR |
| Illumination Control | 11 settings |
| Diopter Adjustment Range | +2 to -3 |
| Windage/Elevation Click Value | 0.5 MOA |
| Elevation Range at 100 m | 100 MOA |
| Windage Range at 100 m | 100 MOA |
| Parallax/Focus | Fixed |
| Parallax/Focus Range, yds | 100 |
| Nitrogen Filled | Yes |
| Operating Temperature Range | -13 °F to +145 °F |
| Lens Cap | Not included |
| Waterproof/Fogproof | Submersible to 33 ft |
| Battery | CR2032 |
| Length, in | 10.3" |
| Weight, oz | 17.3 |
Warranty Information
- Magnification: 1 to 4x
- Objective Lens Diameter: 24 mm
- Exit Pupil Diameter: 1x: 12 mm, 4x: 6 mm
- Eye Relief: 3.5 to 4" / 88.9 to 101.6 mm
- Field of View: 1x: 110' @ 100 yd / 36.7 m @ 100 m, 4x: 27.5' @ 100 yd / 9 m @ 100 m
- Maintube Diameter: 30 mm
- Anti-Reflective Coatings: No
- Fogproof: Yes
- Reticle Type: Reticle Type: P3TR (Second Focal Plane), Battery-Powered Illumination: Red (11-Step Adjustable Brightness)
- Impact Point Correction: 100 MOA (Windage & Elevation), Adjustment per Click: 1/2 MOA
- Diopter Adjustment: -3 to +2
- Parallax Correction: Yes: 100 yd / 91.4 m
- Environmental Resistance: Water-Resistant to 33' / 10 m (Unrated)
- Power Source: 1x CR2032
- Materials: Aluminum
- Dimensions: 10.3" / 260 mm
- Weight: 17.3 oz / 490.5 g
