- Multi-fuel: Uses one (1) Streamlight SL-B9 protected Li-Ion USB-C rechargeable battery pack or one (1) CR123A lithium battery
- 500 lumens; 5,000 candela; 140m beam; runs 1.5 hours (CR123A), runs 1 hour (SL-B9)
- Ambidextrous rear paddle switches with HIGH and LOW options
- Safe-off feature prevents accidental activation; saves batteries
- Rail grip clamp securely attaches/detaches without putting your hands in front of the muzzle
- Durable, anodized machined aluminum construction
- User-enabled strobe function
- IPX7 waterproof to 1m for 30 minutes
- Assembled in the USA

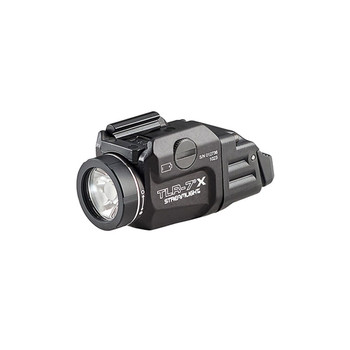

The STREAMLIGHT TLR-7 X USB Rechargeable 500 Lumens Weapon Light features multi-fuel capability - powered by either one (1) CR123A or one (1) Streamlight SL-B9 lithium-ion rechargeable battery pack, both delivering 500 lumens and 5,000 candela. The integrated rail clamp is designed to rapidly attach/detach from the side of the weapon, providing smooth installation and removal without having to put your hands in front of the muzzle. Customizable rear paddle switches, momentary and constant on operation, and a programmable strobe mode offer additional versatility for many tactical applications.
Videos
View AllClose
Warranty Information
| Case Material | Body and face cap: 6000 Series machined aircraft aluminum with black anodized finish Switch housing: Impact- and chemical-resistant engineered polymer |
| Dimensions, in | Width: 1.18" Height: 1.27" Length: 2.58" |
| Weight, oz | CR123A: 2.48 with battery SL-B9: 2.64 with battery |
| Lens | High temperature, shock-mounted, impact-resistant, scratch-resistant BOROFLOAT glass |
| Light Source | White LED, impervious to shock with a 50,000-hour lifetime |
| Light Output | 500 lumens, 5,000 candela peak beam intensity, and 140m beam distance Custom TIR optic produces a concentrated beam with optimum peripheral illumination Optimized electronics provide regulated intensity |
| ON/OFF | Rear switches left and right of trigger guard provide ambidextrous operation (available with high and low actuators) Momentary and constant on operation User-activated strobe |
| Run Time | CR123A: 1.5 hours continuous operation to the 10% output level SL-B9: 1 hour continuous operation to the 10% output level |
| Battery | CR123A: One (1) 3-volt CR123A lithium battery with a storage life of 10 years SL-B9: One (1) Streamlight Li-Ion 850mAh USB-C rechargeable battery pack with integrated safety circuit, rechargeable up to 500 cycles Battery installed/removed through face cap. No need to remove from firearm. Charges within 2.5 hours via USB-C cord or optional bank charger |
| Approvals | Meets applicable European Community and United Kingdom Directives |
| Optional Accessories | Mounting adapters, HPL face cap, SL-B9 Li-Ion Battery Bank Charger |
