ASK AN EXPERTDescription
- Angled Viewing
- Compatible with ATX Spotting Scope
- SWARODUR/SWAROTOP High-Contrast Coatings
- SWAROCLEAN Non-Stick Coating
- Waterproof/Fogproof Construction
- 20mm Eye Relief
- Twist-In Eyecups

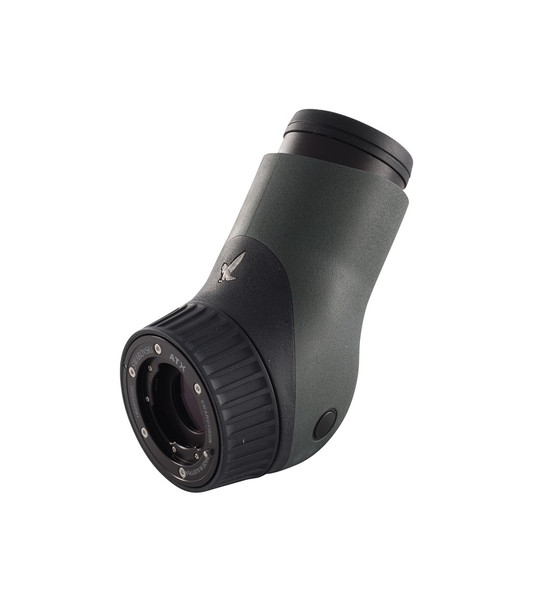

With its angled view, the ATX eyepiece module helps you to comfortably seek out your target. It also makes long-range observation significantly easier, especially when your subject is located in the sky, in a tree, or on a hill.
Videos
View AllClose
Warranty Information
| Magnification | With ATX-65, ATX-85 Scopes: 25 to 60x With ATX-95 Scopes: 30 to 70x |
| Angle of View, deg | With 65 mm, 85 mm Scopes: 2.4 to 1.3° (Actual) With 95 mm Scopes: 2 to 1.1° (Actual) 71 to 57° (Apparent) |
| Field of View (FOV) @ 100yds, ft | With ATX-65, ATX-85 Scopes: 124-68 With ATX-95 Scopes: 104-57 |
| Minimum Focus Distance, ft | With 65 Scopes: 6.9 With 85 Scopes: 11.8 With 95 Scopes: 15.7 |
| Exit Pupil Diameter, mm | With ATX-65 Scopes: 2.6-1.1 With ATX-85 Scopes: 3.4-1.4 With ATX-95 Scopes: 3.2-1.4 |
| Eye Relief, mm | 20 |
| Diopter Correction | +5.0 |
| Water Resistance | Waterproof |
| Functional Temperature | -13 °F to +131 °F (-25 °C to +55 °C) |
| Storage Temperature | -22 °F to +158 °F (-30 °C to +70 °C) |
| Submersion Tightness | 13 ft (4m) Water Depth (Inert Gas Filling) |
