ASK AN EXPERTDescription
- ACOG models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light
- 2X20mm, RTR .223
- Ruggedized forged housing delivers combat proven durability and reliability
- Bindon Aiming Concept (BAC) features both eyes open shooting for improved situational awareness
- Shock-Resistant
- Combat Proven
- Shock-Resistant
- Waterproof

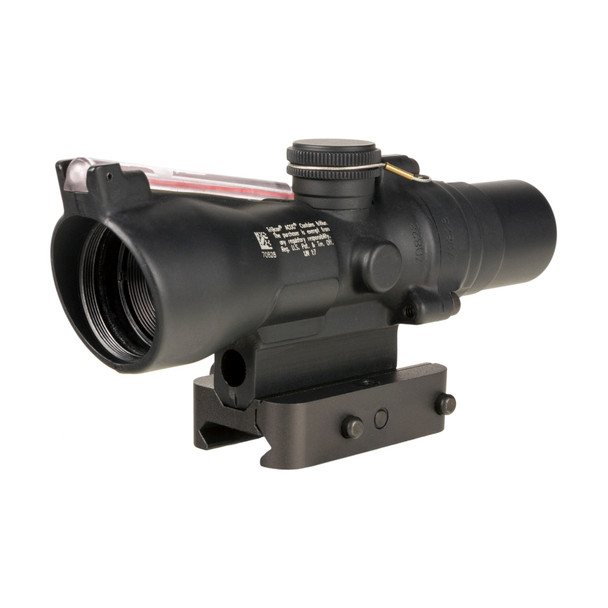

The Trijicon ACOG 2x20 Riflescope is well-suited to firearms with limited space, like UZI, H&K or MP-5 9mm submachine guns. With a step-up in fixed magnification, this illuminated reticle riflescope increases target detection distance in any lighting conditions. The Trijicon Compact ACOG Mount w/ Q-LOC Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened. The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
Warranty Information
| Magnification | 2x |
| Reticle Pattern | Rapid Target RTR |
| Caliber | .223 Rem / 55gr. |
| Night Reticle Color | Red |
| Bullet Drop Compensating (BDC) | Yes |
| Bindon Aiming Concept (BAC) | Yes |
| Power Source | Fiber Optics & Tritium |
| Exit Pupil | 0.39 in. (9.91mm) |
| Housing Material | Forged Aluminum |
| Objective Size | 20mm |
| Day Reticle Color | Red |
| Illumination Source | Fiber Optics & Tritium |
| Adjustment | 2 clicks per in. @100 yards |
| Eye Relief | 2.1 in. (53.34mm) |
| Field of View (feet) | 29.34 ft. @ 100 yds. (9.78m @ 100m) |
| Field of View (degrees) | 5.6° |
| Mount | Trijicon Q-LOC Technology Mount |
| Finish | Matte Black |
| Length x Width x Height | 5.3 in x 2.1 in x 2.6 in |
| Weight | 8.5 oz. (240.97g) |
