ASK AN EXPERTDescription
- Multi-coated lenses provide superior clarity and light-gathering capabilities with zero distortion
- First focal plane reticle to rapidly acquire target and apply correct hold
- Brilliantly illuminated reticle is powered by a single AA battery
- Integrated mounting adapter provides quick and easy mounting to any rail system
- Adjustments are easy and precise - without requiring tools
- Multiple brightness settings with an "off" between each setting. 1-6x24 models feature 6 brightness settings
- Integrated dial fin allows easy rotation through magnification settings
- Waterproof to 20m/66 ft. Dry nitrogen-filled to eliminate fogging
- Tested to MIL-STD-810G, a series of tests approved by the U.S. Department of Defense to simulate conditions in the field

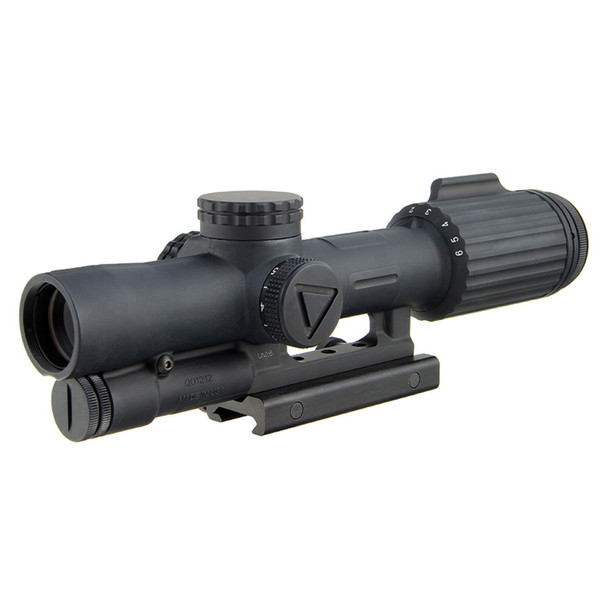

The Trijicon 1-6x24 VCOG (Variable Combat Optical Gunsight) is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion.
The universal segmented circle/MOA reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application.
Powered by a lithium AA battery (provided), it has 6 user-selectable brightness settings. The green LED boasts a battery life of 1400 hours at setting 4 (constant on); the red LED has a 700 hour battery life.
An integrated dial fin allows easy rotation through the magnification range, and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
Videos
View AllClose
Warranty Information
| Magnification | 1-6x |
| Objective Size, mm | 24 |
| Field of View (FOV) @ 100yds, ft | 95.0-15.9 |
| Field of View, deg | 18°-3° |
| Eye Relief, in | 4.0" |
| Exit Pupil, mm | 10.41-3.81 |
| Caliber | MOA |
| Focal Plane | First |
| Reticle Pattern | Segmented Circle / Crosshair |
| Illumination Source | LED |
| Day Reticle Color | Red |
| Night Reticle Color | Red |
| Power Source | AA Lithium or Alkaline Battery |
| Battery Life, hrs | 700 (Continuous use at brightness setting 4 of 6) |
| Adjustment | 1/4 MOA per Click |
| Adjustment Range | Elevation: 90 MOA Total Travel; Windage: 90 MOA Total Travel; Per Revolution: 20 MOA |
| Bullet Drop Compensating (BDC) | Yes |
| Bindon Aiming Concept (BAC) | Yes |
| Mount | Flattop Thumbscrew Mount |
| Housing Material | Forged Aluminum |
| Finish | Matte Black |
| Submersion Depth | 66 ft. (20m) |
| Dimensions, in | 10.05"L x 2.51"W x 2.73"H |
| Weight, oz | 23.2 |
| In Box | - Thumbscrew Flattop Adapter (TA51) - Lithium AA Battery - LENSPEN (TA56) - Trijicon Logo Sticker (PR15) - Manual - Warranty Card |
