- Fully multi-coated with anti-reflective lens coatings for brighter views
- Argon gas purging with o-ring seals guarantees superior fogproof and waterproof performance
- Shockproof construction withstands recoil and impact
- One-piece, aircraft-grade aluminum alloy construction
- 1-inch diameter main tube with hard-anodized black matte finish
- Precision-Glide Erector System
- Fast-focus eyepiece
- Capped zero reset turrets
- 3x zoom range

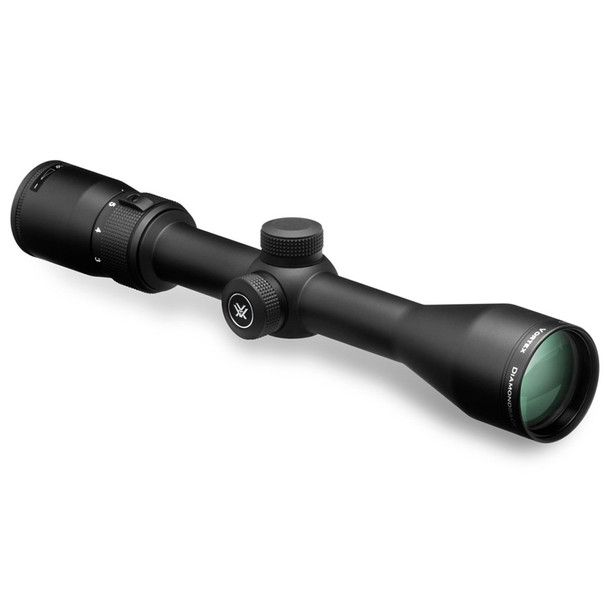

Vortex Diamondback 3-9x40mm Dead-Hold-BDC Reticle 1in Riflescope is loaded with features. First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Vortex Diamondback 3-9x40 riflescope is ideal for big game, muzzleloader, and slug shotgun applications. Dead-Hold BDC reticle has a customized design that helps eliminate guesswork on hold-over and windage corrections. Good for any hunting or shooting at varying ranges where estimating hold-over would be a concern.
| Magnification | 3x-9x |
| Objective Lens Diameter, mm | 40 |
| Field of View (FOV) @ 100yds, ft | 14.8-44.6 |
| Eye Relief, in | 3.3" |
| Tube Diameter, in |
1" |
| Adjustment Graduation, MOA | 1/4 |
| Travel per Rotation, MOA | 15 |
| Turret Style | Capped |
| Parallax Setting, yds | 100 |
| Reticle | Dead-Hold BDC |
| Max Elevation Adjustment, MOA | 70 |
| Max Windage Adjustment, MOA | 70 |
| Length, in | 11.7" |
| Weight, oz | 14.4 |
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Hard Anodized Finish
Highly durable low-glare matte finish helps camouflage the shooter's position.
Dead-Hold BDC Reticle
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
Fully Multi-Coated
Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Videos
-
Why I Chose: Vortex Diamondback Riflescope
Check out our YouTube channel, "Like" us on Facebook, or visit...
-
Crossfire® II VS. Diamondback® Riflescopes
You know them, you love them, they make great hunting optics a...
-
The VIP Warranty | Vortex Optics
VIP stands for a Very Important Promise to you, our customers....
Warranty Information
| Magnification | 3x-9x |
| Objective Lens Diameter, mm | 40 |
| Field of View (FOV) @ 100yds, ft | 44.6-14.8 |
| Eye Relief, in | 3.3" |
| Tube Size, in | 1" |
| Turret Style | Capped |
| Adjustment Graduation, MOA | 1/4 |
| Travel per Rotation, MOA | 15 |
| Max Elevation Adjustment, MOA | 70 |
| Max Windage Adjustment, MOA | 70 |
| Parallax Setting, yds | 100 |
| Reticle | Dead-Hold BDC |
| Length, in | 11.7" |
| Weight, oz | 14.4 |
