Description
- No Clamp (NC) interface requires 17S size mount or adapter with matching two hole pattern of 1.100" with 10/32 threads
- Recommended torque specification for installation of any mount/adapter: up to 30 inch pounds
- Preload on Cant can be adjusted by removing Pod-Loc and tightening the exposed nut by 1/8-1/4 turns until desired tension achieved
- Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
- Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions
- Non-orientated leg length adjustment done by either hand
- Hold What You Move Technology
- Optional Leg Extensions and Adjustable Leg Extensions to increase height
- Optional quick-change Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
- Optional mounting systems available for Accuracy International and Sako rifles

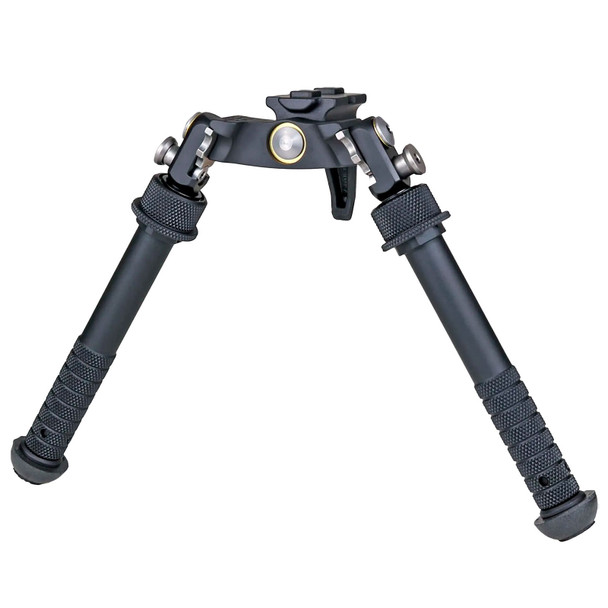

The Atlas BT65-NC Gen. 2 CAL Bipod represents the ultimate fusion of precision engineering and rapid deployment technology. This factory-integrated system combines the rugged performance of the CAL Series Atlas Bipod with the revolutionary locking power of the Area 419 ARCALOCK QD Clamp, delivering a ready-to-mount solution for the discerning shooter.
The "NC" stands for "No Clamp", meaning it requires any 17S size mount in order to attach to a firearm. The interface to install a clamp has a two hole pattern of 1.100" with 10/32 threads. It will also mount directly to Accushot's BT19 AI Spigot or BT70 M-LOK Adapter.
Built on the BT65 platform from the CAL series, this bipod provides 63 degrees of preloaded, adjustable cant secured by the KMW Pod-Loc. It features five independent leg positions, including the patented 45-degree lock, allowing for stable engagement on uneven terrain. The non-rotating legs ensure the bore remains perpendicular to the rifle. The machined 6061-T6 aluminum construction with Mil-Spec hard coat anodizing guarantees durability.
Mated directly to the bipod is Area 419 ARCALOCK QD Clamp. Its 3-position stainless steel lever offers a choice between rigid lock, sliding friction, or quick release on ARCALOCK rails. With removable pins, it also functions flawlessly on standard ARCA spec rails. This combination provides a rock-solid, rattle-free interface between rifle and rest, ensuring absolute confidence from the bench to the backcountry.
Warranty Information
- Model: BT65-NC
- Height Range: 4.8-9.2"
- Height at 90-Degree Position: 6.4"
- Weight: 12.65 oz
- Optional Feet: Yes
- Non-Rating Legs: Yes
- Footprint Spread at 90-Degree (Approximate): 9-12.5"
- Apex Height: 1.54"
- 45-Degree Leg Position: Yes
- Position Button Diameter: 0.5"
- Total Leg Positions: 5
- Pan: No
- Preloaded Cant: 63 Degrees
- Adjustable Pan/Cant Tension: Adjustable Cant Only
- Fore/Aft Limiting Bosses: No
- Inner Leg Material: 6061-T6 Aluminum
