Description
- Bi-spectrum image fusion and object highlight
- Detail enhancement and target recognition
- Selection of thermal view channel, visible light channel, or both them combined
- Fast 50Hz imaging
- 1x, 2x, 4x, 8x digital zoom
- Digital image processing technology
- Ultra-low illumination optical channel
- 1920x1080 Optical resolution
- Eye-safe laser rangefinder
- Waterproof & shockproof

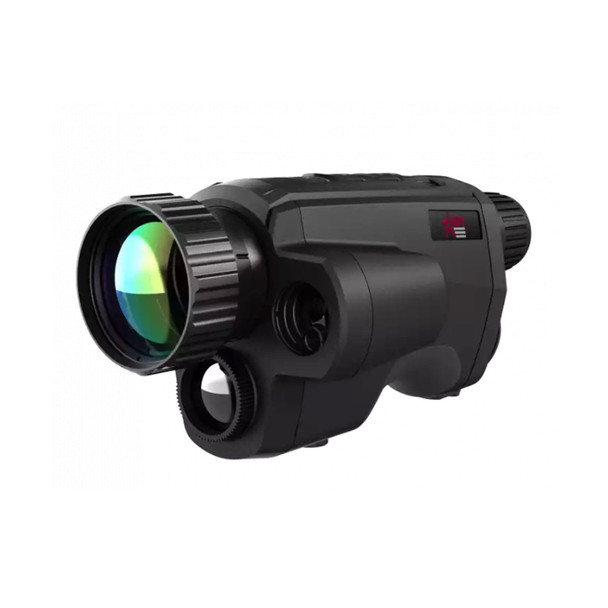

The AGM Fuzion LRF TM50-640 Fusion Thermal Imaging & CMOS Monocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this monocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron 640x512 thermal detector. This sensor from AGM will ensure that not only are human-sized heat signatures detectable at up to 1.6 miles (2600m), but also that foliage and other background imagery will be crisp and detailed in closer distances/ranges.
Unlike other thermal monoculars on the market, the Fuzion LRF also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 600m laser rangefinder simply takes the Fuzion LRF to another level, and this is without even mentioning its 16GB of internal memory and Wi-Fi compatibility.
The Fuzion LRF also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 50mm Germanium lens with a 1.2 aperture, 1920x1080 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 3X base magnification with 8X digital zoom, picture-in-picture mode, built-in laser rangefinder, up to 5 hours of battery life on one removable, rechargeable 18650 battery, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes a long-range IR illuminator, wrist strap, charger, and of course AGM's 5 Year Transferable Warranty!
Warranty Information
Thermal Lens Focal Length, mm | 50 |
Digital Zoom | 1x, 2x, 4x, 8x |
Detection Range | 2,600 m/yd |
Palettes | Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion |
Optical Magnification | 3x - 24x |
Working Temperature | -20°C to 55°C (-4°F to 131°F) |
Distance Measurement | 905 nm |
Scene Mode | Jungle, Recognition |
Hotspot | Yes |
Detector type | 12 µm VOx Uncooled Focal Plane Arrays |
Response Waveband | 8 µm to 14 µm |
Optical Image Sensor | 400-1000 nm |
FFC (Flat Field Correction) | Auto, Manual, External Correction |
Highest Temperature Spot Tracking | Yes |
Standby Mode | Yes |
Refresh rate | 50 Hz |
Aperture | F1.2 |
Resolution | 640 x 512 |
Laser Wavelength | Class 1 |
Power | 5 VDC/2 A, USB Type-C interface Supports external power supply |
Field of view (H x X) | 8.8° x 7° |
Monitor | Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion |
Storage | 16 GB EMMC |
Record Video | On-board video recording |
Capture Snapshot | Yes |
Battery Type | One 18650 rechargeable battery (removable) |
CVBS Output | Yes (via USB) |
Battery Operating Time | Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on) |
Battery Capacity Display | Yes |
Protection Level | IP67 (Waterproof) |
Dimensions, in | 7.2" x 3.4" x 2.9" |
Weight (w/o batteries) | 548g (1.15 Ib) |
