Description
- Quick conversion of daytime optics into thermal imaging scope
- High sensitivity (NETD less than 20 mK)
- Fast 50Hz imaging
- Built-in laser rangefinder
- Adjustable color palettes
- High resolution OLED display
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Wi-Fi data transmission
- Waterproof & shockproof

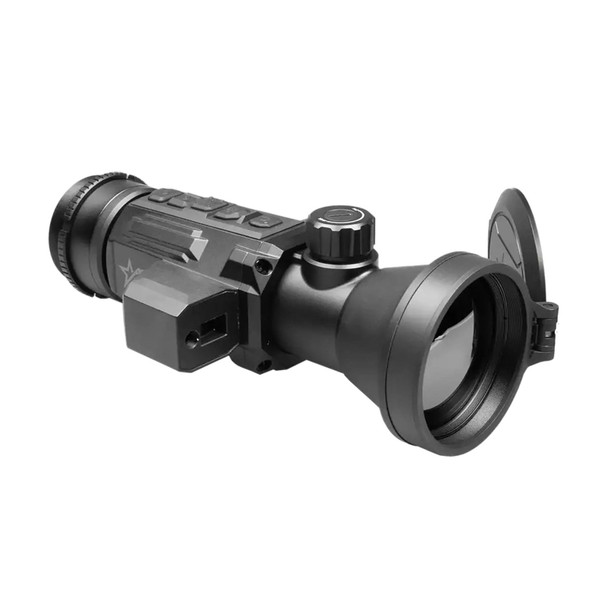

The AGM GLOBAL VISION Secutor LRF-C Thermal Imaging Riflescope is a compact thermal imaging clip-on system with built-in precision laser rangefinder that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Equipped with a highly sensitive, 12-micron thermal detector and 1024x768 OLED monitor, the AGM Secutor LRF-C provides a clear image under harsh environmental conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The user-friendly interface, comfortable and ergonomic operating controls makes Secutor LRF-C use incredibly easy. The Secutor LRF-C can easily be attached in front of rifle scopes with magnification up to 10x for medium range use.
The built-in laser range finder of the AGM Secutor LRF-C is designed to determine the exact distance between the observer and the target. Measurement results are displayed in the scopes monitor. Four replaceable Li-Ion battery gives the device more than 6 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on-board video/audio recording and image capture. Onboard Wi-Fi module allows live video streaming and video/image recording via mobile applications.
Warranty Information
Palettes | Black Hot, White Hot, Red Hot, Fusion |
Exit Pupil Diameter | 22 mm |
Video Recording | Yes |
Audio Recording | Yes |
Magnification | 1x |
Detector type | 12µm VOx Uncooled Focal Plane Array |
Response Waveband | 8µm to 14µm |
FFC (Flat Field Correction) | Auto, Manual, External Correction |
Highest Temperature Spot Tracking | Yes |
Standby Mode | Yes |
Refresh rate | 50 Hz |
Resolution | 640 x 512 |
Laser Rangefinder | Up to 1000 m, +/-4 m accuracy |
Laser Wavelength | 905 nm |
Detection Range (6' object) | 3,800 m/yd |
Lens system | 75 mm; F1.0 |
NETD | Less than 20 mK (@25°C), F#=1.0 |
Field of View (H x X), deg | 5.9° x 4.7° |
Monitor | 1024x768, 0.39 inch, OLED |
Storage | 16 GB EMMC |
Capture Snapshot | Yes |
Battery Type | Four CR123A Lithium batteries |
Wi-Fi | Yes |
Battery Operating Time | ?ore than 6 hours |
External power supply | 5 VDC/2 A, USB Type-C |
Operating Temperature Range | -30°C to 55°C (-22°F to 131°F) |
Protection Level | IP67 |
Dimensions | 228 x 111 x 81 mm (9 x 4.4 x 3.2 in) (w/o mount) |
Weight | 0.73 kg (1.6 lb) |
