- Superior for predator control at medium- and long-range distances
- Excellent performer in high humidity conditions
- Picture-in-Picture function- 2X multiplied image on a top of the display
- Automatic shatter based thermal VOx core with Auto- or Manual calibration
- Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
- 8 reticle patterns including 3 BDC reticles, 4 color options for each reticle pattern
- Ability to save 4 profiles of zeroing calibration data
- Stradiametric Rangefinder function to estimate the distance to the targets of manually adjustable target's height
- A precise lens focusing mechanism
- 5V DC external power supply option via a Type-C USB port

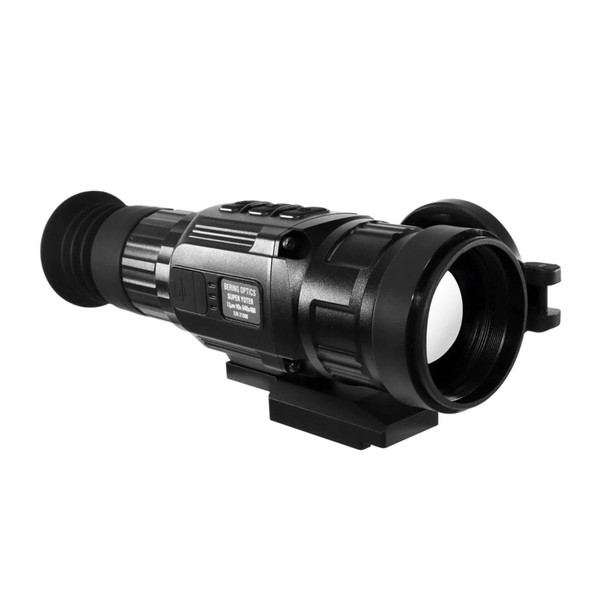

The BERING OPTICS Super Yoter R 2.0-8.0x35mm Ultra-Compact Thermal Weapon Sight features the advanced 12µm Vanadium Oxide (VOx) 640x480 core resolution with 50Hz refresh rate that makes the scope ideal for predator control at medium- and long-range distances. The wide range of controls and capabilities allow the user to adapt the scope to various conditions and personal preferences. There are 8 reticle patterns including 3 BDC reticles, along with four color options for each reticle pattern. The sight operation is controlled with three buttons allowing easy selection of the options.
A unique adjustable Stradiametric Rangefinder can be set to the height of the animals, thus increasing the overall usefulness of this feature. Other useful features of the Super Yoter R is a wide selection of the image adjustment options as well as the image background adjustment and calibration.
The Super Yoter R is nitrogen-purged, is water-, dust- and shock-proof and shock-rated for .338 Win Mag., 30-06 Spring Mag. The Super Yoter R is action ready in any environment or light conditions, including conditions when the environmental obscurants such as smoke, dust, haze, are present.
Warranty Information
| Optical Magnification, x | 2.0 |
| Digital Multiplication, X | 2X, 3X, 4X |
| Objective lens system | 50mmF/1.0 |
| Angular FOV at Optical Magnification (Horizontal x Vertical), degrees | H8.5° x V6.4° |
| Linear FOV at Optical Magnification at 100yards (Horizontal x Vertical), approx., yd/m | H 15 /13.7 x V 11.2/10.2 |
| Eye relief, mm | 46.6 |
| Focus range, yds | 0.8 to infinity |
| Diopter Adjustment, D | -5; +5 |
| Core resolution, pxl | 640 x 480 |
| Pixel pitch, µm | 12 |
| Image refresh rate, Hz | 50 |
| Thermal Sensitivity (NETD), mK | ≤40 |
| Display type and resolution, pxl | OLED 1024×768 |
| Detection Range, (6 ft tall target), approx., yd/m | 2200 / 2000 |
| Dimensions, in/mm | 8.46" x 3.15" x 2.36" / 215 x 80 x 60 |
| Weight w/out batteries, but with QD mount, eye cup & lens cover, oz/g | 20 / 570 |
| Power supply standard | 3V CR123 (two) or 3.7V rechargeable (two) or 5V DC (USB C-type) |
| Estimated battery life, hours | 3.5 for two 3V CR123 |
| Operating temperature, typical, °F | -14°F to +122°F |
| Water intrusion | IP67 |
| Humidity, % | up to 96% |
| Included | SUPER YOTER R Thermal Weapon Sight Larue Tactical QD lockable mount Front lens protective cap Rubber eye guard 2 CR123 batteries L-shaped Video-out Type-C USB cable with 3.5mm RCA male connector plug Soft Carrying Case with a shoulder strap Lens Cleaning Cloth Instruction manual |
