- Superior for predator control at medium- and long-range distances
- Excellent performer in high humidity conditions
- Picture-in-Picture function- 2X multiplied image on a top of the display
- Automatic shatter based thermal VOx core with Auto- or Manual calibration
- Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
- 8 reticle patterns including 3 BDC reticles
- 4 color options for each reticle pattern
- A precise lens focusing mechanism
- 32Gb internal memory
- LaRue Tactical Quick-Detach (QD) lockable mount

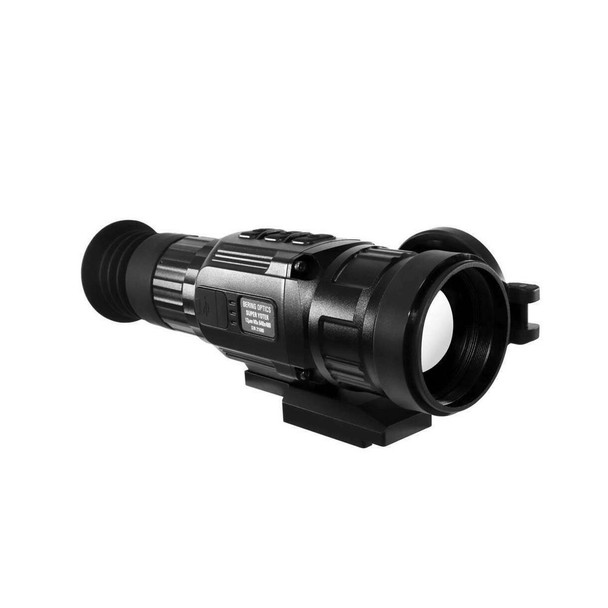

The BERING OPTICS Super Yoter R Ultra-Compact Thermal Weapon Sight features the advanced 12μm Vanadium Oxide (VOx) 640x480 core resolution with 50Hz refresh rate that makes the scope ideal for predator control at medium- and long-range distances. This Thermal Scope has 3 modifications with native magnification of 3.0x (BE46050L), 2.0x (BE46035/BE46035L) and 1.5x (BE46025/BE46025L) with digital zoom of 2X, 4X. The wide range of controls and capabilities allow the user to adapt the scope to various conditions and personal preferences. There are 8 reticle patterns including 3 BDC reticles, along with four color options for each reticle pattern. The sight operation is controlled with three buttons allowing easy selection of the options.
A unique adjustable Stradiametric Rangefinder can be set to the height of the animals, thus increasing the overall usefulness of this feature. Other useful features of the Super Yoter R is a wide selection of the image adjustment options as well as the image background adjustment and calibration. The Super Yoter R is nitrogen-purged, is water-, dust- and shock-proof and shock-rated for .338 Win Mag., 30-06 Spring Mag. The Super Yoter R is action ready in any environment or light conditions, including conditions when the environmental obscurants such as smoke, dust, haze, are present.
Warranty Information
| Optical Magnification, x | 2x |
| Digital Magnification, x | 2x, 4x |
| Objective Lens System | 35mmF/1.0 |
| Angular FOV at 1.0x (Horizontal x Vertical), degree | H11° x V8° |
| Eye Relief, mm | 46 |
| Focus Range, m | 1 to Infinity |
| Diopter Adjustment, D | -5; +5 |
| Reticle W/E adjustment increments per pxl | 0.54" at 1X (3.0x magnification) 0.14" at 4X multiplication |
| Core Resolution, pxl | 640x480 |
| Pixel Pitch, µm | 12 |
| Start-up time, min., sec. | 20 |
| Image Refresh Rate, Hz | 50Hz |
| Thermal Sensitivity (NETD), mK | < 40 |
| Display Type and Resolution, pxl | OLED 1024x768 |
| Detection Range, (6 ft tall target), approx., yd/m | 900 / 800 |
| Dimensions, in/mm | 7.8" x 2.83" x 2.36" / 200 x 72 x 60 |
| Weight w/out batteries, but with QD mount, eye cup & lens cover, oz/g | 18 / 510 |
| Power Supply | 3V CR123 (two) or 3.7V rechargeable (two) or 5V DC (USB C-type) |
| Estimated battery life, hours | 3.5 from two 3V CR123 |
| Operating Temperature, Typical, °F | -14°F to +122°F |
| Water Intrusion | IP66 |
| Humidity, % | Up to 96% |
