ASK AN EXPERTDescription
- Machined from 7075 aircraft aluminum
- Full length cross-slots to true picatinny specifications
- Lower profile (approx. .100" lower than the standard mounts)
- TORX screws provided with TORX allen key
- Two-stage hard coat anodizing

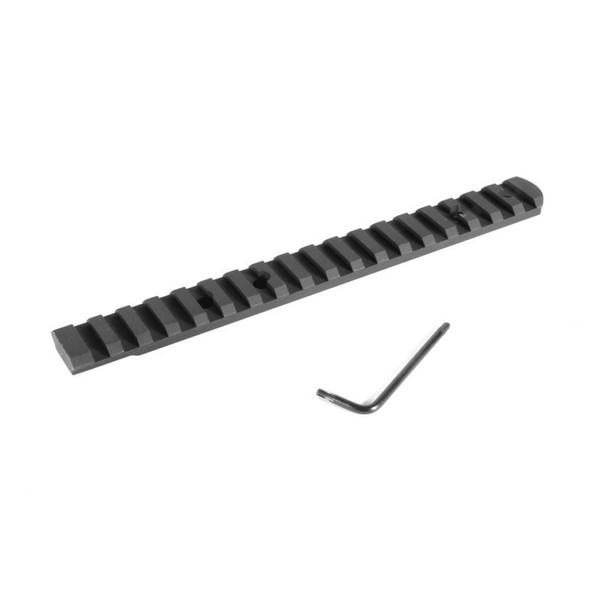

Optical mounting platforms are an important part of a precise rifle. The EVOLUTION GUN WORKS HD Picatinny Rail Scope Mount is cut from US made 7075 bar stock aluminum with all critical dimensions cut in one set-up. Their Mil Spec Black Anodize Type III Hard Coat provides exceptional weather and wear resistance. Optimized for rugged use.
Warranty Information
| Rail Type | One Piece Picatinny |
| Machined From | Solid 7075 T6 Aircraft Grade Aluminum |
| Finish | Matte Black Hardcoat |
| Center Spread, in | 3.245" |
| Overall Length of Mount, in | 7.458" |
| Height, in | .35" (Top of Receiver to Top of Picatinny) |
| Weight, oz | 2.5 |
| Fits | T3x Superlite Camo
T3x Superlite, T3x Compact, T3x Lite, T3x Lite Stainless T3x Compact Tactical Rifle, T3x Varmint, T3x Laminated Stainless T3x Forest, T3x Hunter Stainless, T3x Hunter, T3 Hunter, T3 Compact Tactical T3 Laminated Stainless, T3 Varmint, T3 Super Varmint, T3 Varmint Stainless |
| Quick Disconnect Ring Compatible | Yes |
| Ambidextrous | Yes |
| Mounting Hardware | #6-48 X 1/4 Screws and T-10 Bit Included |
| Torque Specs | 20 in/lbs |
