- Patented Exposed Zero Lock 'N' Stop Elevation Turret
- First Focal Plane (FFP)
- 30mm Mono-Tube Chassis
- Side Focus
- High Volume Eyebox
- Multi-LED High Intensity Reticle
- High Grade, Low Dispersion Crown Glass
- 21 Layer Fully Multi-Coated Lenses
- Fast Focus Eyebell with Lock Ring
- Supplied with Professional Metal Flip-Up Covers

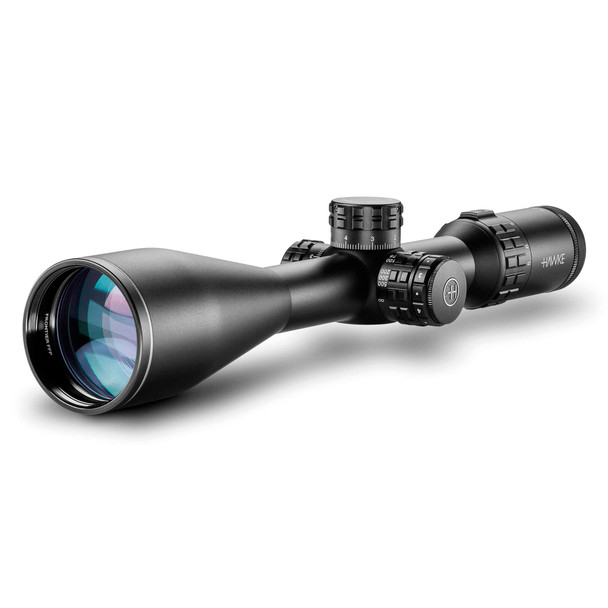

The Hawke Frontier 30 FFP 5-25x56 Riflescope is designed to give shooters ultimate flexibility in the field.
All models feature Hawke's H7 optics with high zoom ratio, supreme clarity and light transmission. Supreme accuracy for rifle shooting, driven and hunting applications.
The optical system with its wide magnification range, provides increased flexibility when transitioning between close and long range shooting.
The 30mm mono-tube chassis, machined from high grade aluminium, comes with Zero Lock 'N' Stop Elevation Turrets (Patent Pending) that are resettable, lockable and feature a state of the art return to zero feature. They are exposed giving ease of access and offer a tactical design.
The FFP Mil Pro (25x) reticle was developed specifically for first focal plane optical systems and based around the common principles of Mil spaced reticles. With half Mil spaced markings extending out to 10 Mil of holdover, the FFP Mil Pro is a versatile reticle that provides aim points no matter how extreme the distance. The FFP Mil Pro 25x has additional 1/4 Mil aim points on the center section of the reticle to give even greater precision.
Warranty Information
| Magnification | 5-25x |
| Objective Lens Diameter, mm | 56 |
| Field of View (FOV) @ 100yds, ft | 22.5-4.5 |
| Field of View, degrees | 4.3-0.9 |
| Eye Relief, in | 4" |
| Exit Pupil, mm | 11.2-2.2 |
| Parallax Correction, yds | 15 to Infinity |
| Turret Caps | N/A |
| Click Value | 1/10 MRAD |
| Elevation Turret Clicks (Max) | 19 MRAD |
| Windage Turret Clicks (Max) | 19 MRAD |
| Parallax | Side Focus |
| Tube Size, mm | 30 |
| Optical System | System H7 |
| Reticle | FFP Mil Pro (25x) |
| Illumination | 6 Levels with Off Positions In-between (Red) |
| Ocular Type | Locking Fast Focus |
| Power Selector | Knurled Posi-Grip with Removable Zoom Lever |
| Lens Coating | Fully Multi-Coated (21 Layers) |
| Focal Plane | FFP (First Focal Plane) |
| Waterproof | Yes |
| Shockproof | Yes |
| Fog Proof | Yes, Nitrogen Purged |
| Length, in | 14.4" |
| Weight, oz | 24.6 |
| In Box | - Pro Flip-Up Covers - 4" Sun Shade - Zoom Lever - CR2032 Battery - Lens Cloth - Instruction Manual - Reticle Booklet |
