Description
- Professional-Grade Optical system
- Exposed elevation turret
- ZeroLock dial
- Waterproof & Fogproof

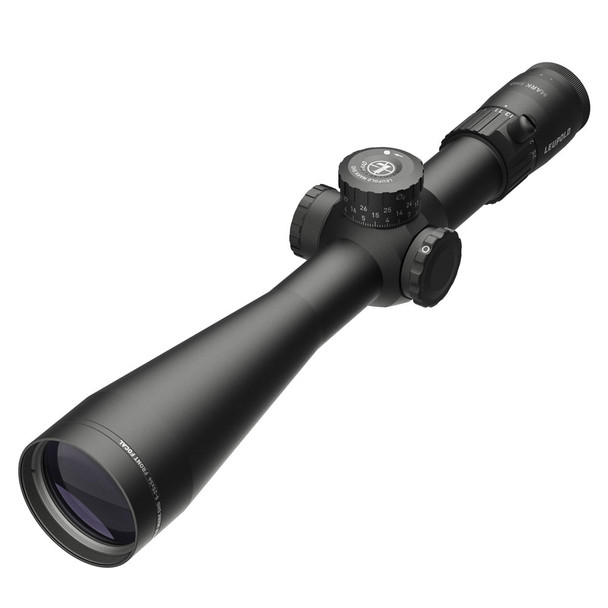

Pick up a Mark 5HD 5-25x56mm and you'll feel the difference. It's up to 20 ounces lighter than other riflescopes in its class, giving you an advantage in the field or at the range. The versatile 5-25x magnification lets you dominate mid-range shots, while also giving you the flexibility to reach out to long distances. With three revolutions of elevation adjustment and multiple reticle options, this scope will max out the performance of the latest long-range rifles and ammunition, guaranteed.
Built around Leupold's Professional-Grade Optical System, the Mark 5HD offers unmatched light transmission that's designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter. Ergonomically designed with more tactile and audible click adjustments, larger numbers, and a high-speed throw lever, the Mark 5HD is built to put accurate fire downrange faster.
The unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It's 100% waterproof and fogproof, and like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.
Warranty Information
Magnification Max | 25 |
Magnification Min | 5 |
Objective Lens Diameter, mm | 56 |
Linear FOV Low Mag @ 100yds, ft | 20.4 |
Linear FOV High Mag @ 100yds, ft | 4.2 |
Angular FOV Low Mag, Degrees | 3.9 |
Angular FOV High Mag, Degrees | .8 |
Eye Relief Low Mag, in | 3.6 |
Eye Relief High Mag, in | 3.8 |
Minimum Parallax-Free Distance, yd | 50 |
Battery Life (hr), Low Intensity | 1800 |
Battery Life (hr), High Intensity | 96 |
Number of Illum Settings | 7 |
Finish | Matte |
Adjustable Objective | No |
Reticle Focal Plane | First Focal Plane |
Elevation Adjustment Type | M5C3 |
Locking Dial | Yes |
Revolution Indicator | Yes |
Rezero Type | Set Screw |
Windage Adjustment Type | Capped |
Custom Dial System (CDS) | No |
BDC Dial Included | No |
Reticle Type | Illuminated |
Reticle | Illum. FFP PR1-MIL |
Battery Type | CR2032 |
Switch Type | Dial |
Daylight Bright Illumination | No |
Motion Sensor Technology (MST) | Yes |
Electronic Reticle Level | No |
Guard-ion Lens Coating | No |
Weight, oz | 30 |
Elevation Adjustment Value per Click | 0.1Mil |
Elevation Adjustment Range, MOA | 120 |
Elevation Adjustment Range, MIL | 35 |
Elevation Adjustment Range @ 100m, cm | 349 |
Elevation Adjustment Per Revolution | 10.5 MIL |
Elevation Dial Travel Limit | 30MIL |
Windage Adjustment Value per Click | 0.1Mil |
Windage Adjustment Range, MOA | 60 |
Windage Adjustment Range, MIL | 17 |
Windage Adjustment Range @ 100m, cm | 175 |
Windage Adjustment Per Revolution | 10 MIL |
