- 4 Accessory Mounting Locations on the left and right side of the mount body, in the front and back. The holes are on 20mm hole spacing, which works with other Unimount accessories
- Extreme Bore Size consistency, Roundness and Cylindricity with tolerances as low as 0.0002"
- Provides the ability to confidently move the optic/mount to multiple rifles with simple windage and elevation adjustments
- Superior clamping surface to ensure maximum rail engagement

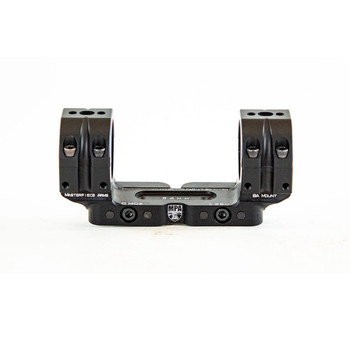

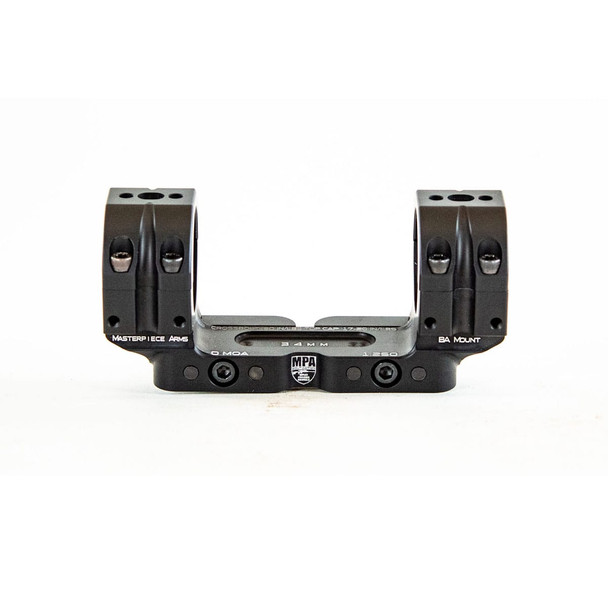

MPA produces one of the most popular mounts in the PRS. The MASTERPIECE ARMS Bolt Action Scope Mount is made for mounting high performance optics onto bolt action rifles with Picatinny rail scope bases.
The mount is precision machined from 6061 T6 aluminum and finished in Mil-Spec anodize. Horizontal split rings. The interface ensures positive engagement for both in spec and out of spec rail systems. Absolute Return to Zero via multiple locking lugs located on the bottom of the rail interface.
Warranty Information
| Ring Diameter, mm | 30 |
| Overall Length, in | 4.840" |
| Overall Weight, oz | 6.9 |
| Open Gap between Rings, in | 2.700" |
| Ring Width, in | 1.070" |
| Ring Height, in | 1.125" |
| Material Type | 6061 Aluminum |
| Surface Coating | Black Anodized |
| Top Cap Torque | 15-20 inch lbs |
| Cross Bolt Torque | 60 inch lbs |
| Accessory Thread Pitch | M5 |
| Accessory Hole Spacing | 20mm |
