- Machined from billet 7000 series aluminum
- All aluminum parts are hardcoat anodized
- Torx 20 ring and clamping screws are zinc-nickel coated
- Rings are diagonally cut for increased visibility of the elevation and windage turrets
- 10-degree wedge included
- Picatinny mount for use with NV Equipment
- Note: Will not fit the SAKO S20 or rifles with 2-piece rails. As of fall 2023, rear top covers will no longer feature alignment grooves.
The IDEAL SCOPE MOUNT SYSTEM series of mounts feature seven set of interfaces to attach any of more than 40 different accessories and has a bubble level integrated in the rear plane of the mount body to prevent canting of the rifle. The rings are diagonally cut for increased visibility of the elevation and windage turrets (US Patent 8,733,011).
The mounts are machined from billet 7000 series aluminum and all aluminum parts are hardcoat anodized. The Torx 20 ring and clamping screws are zinc-nickel coated for corrosion resistance and come pre-waxed from the factory to ensure proper torque values.
The mount is shipped complete with a manual and a "wedge" leveling key.

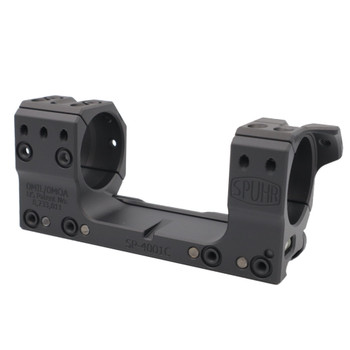

Note: The SP-4002C is designed for use with 56 mm objectives on rifles with MIL-STD-1913 or STANAG 4694 rails and is especially suitable for extended Picatinny rails combined with night vision equipment. The SP-4002C will fit most 34 mm scope tubes including scopes with extended erector housings.
Warranty Information
| Rings | 34 mm |
| Tilt | 0 MIL / MOA |
| Height | 38mm / 1.5in |
| Length | 120mm / 4.72in (body) 130mm / 5.12in (OAL) |
| Interfaces | 7 sets |
| Weight | 256g / 9oz |
