Description
- 12x magnification for long-range observation with minimal shake
- 42mm objective lenses boost light-gathering capability to keep views bright, even in challenging light conditions
- Roof prism optical path maintains a compact form factor for easier handling
- Swarovision coatings increase light transmission and enhance color fidelity
- Tracking assistant helps identify the target area
- Scan mode allows measurement of moving targets
- EL Range TA Configurator App connects via Bluetooth, capable of three custom profiles

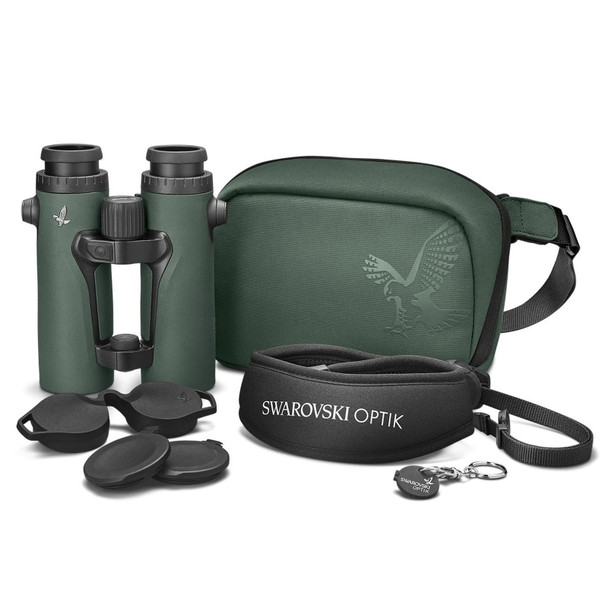

Swarovski Optik's EL Range TA (Tracking Assistant) Rangefinder Binoculars provide advanced range finding and glassing performance. They feature Swarovision Technology to deliver a flawless image with color fidelity and exceptional resolution with 90% light transmission and a wide field of view. Unlike most laser rangefinders that just provide distance to the target, the EL Range TA can be configured to fit your personal ballistic needs by pairing with the EL Range TA Configurator App. From there, the user can create three different ballistics profiles based on their needs. Aside from range measurement, factors including shot angle, air pressure, and temperature are taken into account and calculated allowing the user to make the most accurate assessment of every hunting situation.
In addition, TA assists the hunter in identifying the target area by measuring back to the point where the shot was taken. This can be performed with the EL Range TA itself, or via the app. Using the binoculars themselves, tracking is performed by selecting one of the last three measurements, then distance data and directional arrows will indicate how far you need to travel left, right, forward and backward to locate the target area. If cell reception is available, the user can track using the app. This is done by selecting one of the last three measurements, then simply let your phone guide you to the target area.
Warranty Information
Magnification | 12x |
Objective Lens Diameter, mm | 42 |
Field of view (m/1,000 m/ft/1,000 yds) | 96 m/288 ft |
Field of view, deg | 5.5° |
Exit Pupil Distance, mm | 19.0 |
Exit Pupil Diameter, mm | 3.5 |
Shortest focusing distance | 5 m/16.4 ft |
Diopter adjustment left/right | - 7/+ 5 dpt |
Light Transmission | 90% |
Twilight Factor based on ISO 14132-1 | 20.5 |
Submersion Tightness | 4m / 13ft |
Functional Temperature Electronics | -10/+55°C +14/+131°F |
Functional Temperature Mechanics | -25/+55°C -13/+131°F |
Storage Temperature | -30/+70°C -22/+158°F |
Add-On Program (App) | Swarovski Optik Hunting App |
Operating System for App | iOS from Version 8.1; Android from Version 4.4 KitKat |
Interface | Bluetooth |
Display | LCD |
Measurement Range | 10-2000 m 10-2200 yds |
Range-Finding Accuracy | 10-1500 m ±1 m/yds |
Range-Finding Accuracy | > 1500 m ± 2 m/yds |
Measurement Duration, s | <0.5 |
Measured Angle, deg | +/- 90° |
Laser | Klasse 1 EN/FDA |
y/m changeover | Yes |
Battery | CR2 |
Operating Hours | 2000x |
Approx Length, in | 6.6" |
Approx Width, in | 5.3" |
Approx Height, in | 3.1" |
Approx Weight, oz | 32.6 |
In Box | FSB Functional Sidebag UCS-R Universal Comfort Strap with Battery Compartment Eyepiece Cover Objective Lens Cover BT Tool Microfiber Cloth Strap Loop Connector Soap and Brush |
