Description
- 10x magnification for long-range observation with minimal shake
- 42mm objective lenses provide the light-gathering capability to keep views bright, even in challenging light conditions
- Swarovision coatings increase light transmission and enhance color fidelity
- Roof prism maintains a compact form factor for easier handling
- Open-bridge/dual-hinge configuration reduces weight without sacrificing strength
- Large, knurled center focus wheel for easy manipulation in cold and wet weather, or while wearing gloves
- In-view LCD display
- Tracking Assistant narrows down location of game after successful shot
- Calculates angle, temperature, and air pressure
- Uses (1) CR2 battery, runtime up to 2000 hours

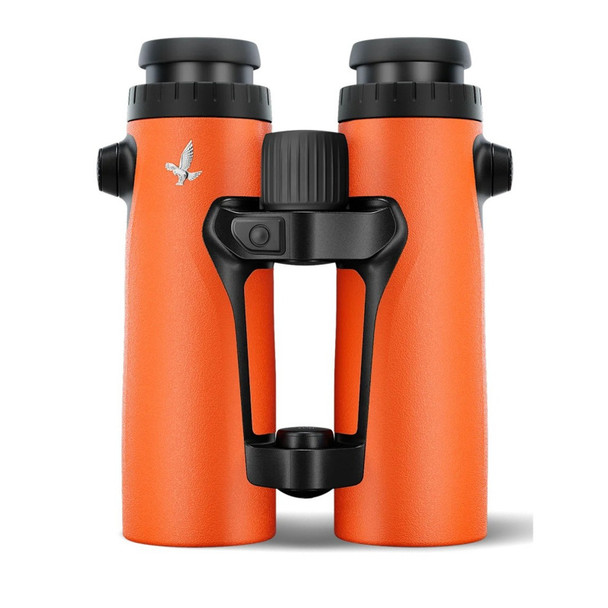

Optimized for hunting, these orange 10x42 EL Range TA Laser Rangefinder Binoculars with Tracking Assistant combine premium Swarovski optics with high-tech tools for a successful day in the field. Spot your target with Swarovision edge-to-edge sharpness with a generous field of view and measure its range up to 2200 yards away. Combine range, angle, and atmospheric readings with your personal ballistic data, uploaded via Bluetooth, for corrected shooting distance. Finally, once you've hit your target, use the Tracking Assistant feature to narrow down the location of your game..
The EL Range TA employs an eye-safe Class 1 laser for accuracy within one yard when ranging out to 1500 yards, and with the reading displayed in the right tube in half a second. Range stationary targets in one-off mode and moving targets in scan mode. The optic measures angles (up to 90 degrees), temperature, and air pressure, which, when merged with the details of your cartridge, displays shooting distance or necessary correction value down to the number of clicks required. The Swarovision design of lenses and coatings yields a 419' field of view at 1000 yards, with 90% light transmission for a bright, crisp image that has accurate colors. A single button activates the rangefinder and provides access to all the features, functions, and settings.
To withstand the rigors of a life lived outdoors, the EL Range features a lightweight and durable housing filled with inert gas for fogproof performance and is submersible to a depth of 13'.
Warranty Information
Laser Type | Class 1 Eye Safe |
Metering Range | 10 to 2200yd / 9.1 to 2011.7m |
Magnification | 10x |
Objective Lens Diameter, mm | 42 |
Power Source | 1xCR2 |
Accuracy | 1500yd / 1371.6m: 1yd / 0.9m |
Prism Type | Roof |
Angle of View, deg | 61 (Apparent) |
Field of View | 361.4' @ 1000 yd / 120m @ 1000 m |
Minimum Focus Distance | 16.4' |
Exit Pupil Diameter | 4.2 mm |
Eye Relief | 19 mm |
Dioptric Correction | -7 / +-5 |
Interpupillary Adjustment | 56 to 74mm / 2.2 to 2.9" |
Display Type | LCD |
Inclinometer | Maximum Angle: 90 deg |
Operating Conditions | 22 to 87F / -10 to 55C |
Storage Conditions | -22 to 158F / -30 to 70C |
