Description
- 4A-IF Reticle, 2nd FP
- 54 MOA Windage & Elevation/0.36 MOA IPC
- Accepts BTF - Ballistic Turret Flex
- SWAROCLEAN Repellent Coating
- SWAROLIGHT Illumination Control
- 30mm One-Piece Maintube
- Capped, Finger-Operated Turrets
- Lightweight Anodized Aluminum Housing
- 93% Total Optical Transmission
- Fogproof & Waterproof to 13'

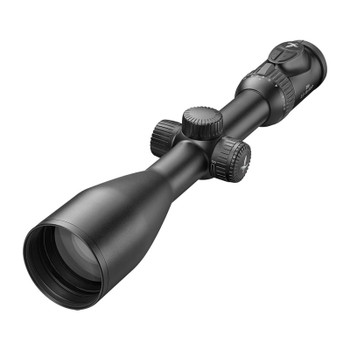

Swarovski designed and built the 1.7-13.3x42 Z8i P L Riflescope with a 30mm maintube to deliver uncompromising optical performance, precision, and durability. With its high-quality optical system, lens glass, and fully multi-layer anti-reflection coatings, it provides brilliant and sharp images with high resolution. No matter when you hunt, its state-of-the-art optical system will deliver bright, crisp, and clearly visible images with a versatile 42mm objective aperture. The objective and ocular lenses are further enhanced with a SWAROCLEAN coating to ensure that water droplets and dirt can be easily removed without a trace. To help with ballistic and wind drift compensation, this scope offers a 54 MOA windage and elevation adjustment ranges with 0.36 MOA click values.
A notable attribute of this riflescope is the 4A-IF illuminated reticle. Its outline resembles the legendary German #4 reticle. The reticle is etched on glass in the 2nd focal plane and features three medium posts, a fine crosshair, and an illuminated brilliant center dot. It also has a FLEXCHANGE function that allows you to add on-demand an illuminated target circle to the reticle's pattern. The FLEXCHANGE can be engaged using a small lever located on the top portion of the eyepiece. The scope also offers 64 reticle brightness levels (32 for twilight and 32 for daylight) and a SWAROLIGHT switch that turns off the illumination when you tilt your firearm up more than 70° or to the side more than 30°.

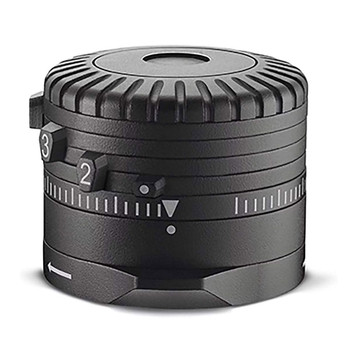

Drawing on a long tradition of engineering excellence and precision manufacturing, this waterproof and fogproof optic was crafted from high-quality, lightweight, and durable aluminum with a matte black corrosion-resistant anodized finish. Among the many highlights are a 30mm single-piece maintube, capped finger-operated turrets, a side parallax corrector, and a precision zoom eyepiece. The windage and elevation gear is also compatible with the optional high-precision ballistic turret flex (BTF). This turret can be used for either windage or elevation and provides extended range of adjustment, precision graduation, and high-traction knurling. The knob can be enhanced with custom graduation and does not require any tools for installation.
Videos
View AllCloseWarranty Information
Magnification | 1.7 to 13.3x |
Objective Lens Diameter | 42 mm |
Field of View | 1.7x: 75.6' @ 100 yd / 25.2 m @ 100 m 13x: 9.3' @ 100 yd / 3.1 m @ 100 m |
Exit Pupil Diameter | 1.7x: 8.1 mm 13.3x: 3.1 mm |
Eye Relief | 3.7" / 95 mm |
Diopter Correction | -3.0 to +2.0 |
Reticle Type | 4A-IF Reticle (Second Focal Plane) |
Filter Thread | M44 x 0.75 |
Impact Point Correction | 0.36 MOA per Click |
Windage Adjustment | 54 MOA |
Elevation Adjustment | 54 MOA |
Parallax Correction | Yes, 54.6 yd / 50 m to Infinity |
Water Resistance | Waterproof to 13.1' / 4 m |
Fogproof | Yes |
Operating Temperature | -4 to 131°F / -20 to 55°C |
Storage Temperature | -22 to 158°F / -30 to 70°C |
Maintube Diameter | 30 mm |
Battery | 1x CR2032 |
Battery Runtime | 180 to 1400 Hours (Average) |
Dimensions | Length: 13.2" / 33.6 cm |
Weight | 21.9 oz / 620 g |
