- Apochromatic Objective Lens System
- Optically Indexed Lenses
- HD Lens Elements
- XR Plus Fully Multi-Coated
- Aircraft-Grade Aluminum Single-Piece Tube
- Ultra-Hard, Scratch-Resistant ArmorTek Coating
- Waterproof, Fogproof and Shockproof
- Large Diameter Turrets
- Second Focal Plane VMR-2 MOA Reticle
- Hard Anodized Finish

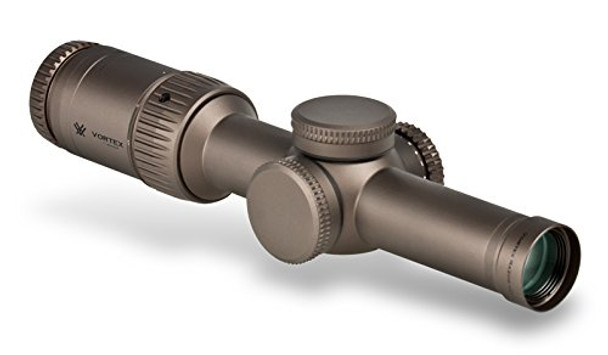

Vortex Razor Gen II HD-E 1-6x24 VMR-2 MOA Riflescope is a top-tier optical solution for short to medium-range tactical applications. Optically, it delivers the highest level of clarity, resolution, color accuracy, light transmission, and edge-to-edge sharpness. The ultra-forgiving eye-box with generous eye relief generates a heads-up-display-like sight picture for fast target acquisition and optimal monitoring of the surrounding environment. A true, daylight-bright illuminated center dot gives shooters ultimate close-quarters versatility
.
| Magnification | 1x-6x |
| Objective Lens Diameter, mm | 24 |
| Field of View (FOV) @ 100yds, ft | 20.5-115.2 |
| Eye Relief, in | 4" |
| Tube Diameter,mm |
30 |
| Adjustment Graduation, MOA | 1/2 |
| Travel per Rotation, MOA | 50 |
| Turret Style | Low Capped |
| Parallax Setting, yds | 100 |
| Reticle | VMR-2 (MOA) |
| Max Elevation Adjustment, MOA | 150 |
| Max Windage Adjustment, MOA | 150 |
| Length, in | 10.1" |
| Weight, oz | 21.5 |
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Locking Side Illumination
Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.
VMR-2 Reticle (MOA)
The VMR-2 is a hashmarked ranging reticle with an illuminated center dot that uses MRAD-based subtension lines for ranging, holdover and windage corrections.
Illuminated Center Dot
Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.
Friction Reduction System
Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability.
Videos
View AllClose
Warranty Information
| Magnification | 1-6x |
| Objective Lens Diameter, mm | 24mm |
| Eye Relief, in | 4" |
| Field of View (FOV) @ 1000yds, ft | 115.2-20.5 |
| Tube Size, mm | 30 |
| Turret Style | Low Capped |
| Adjustment Graduation | 1/2 MOA |
| Travel per Rotation | 50 MOA |
| Max Elevation Adjustment | 150 MOA |
| Max Windage Adjustment | 150 MOA |
| Parallax Setting, yds | 100 |
| Reticle | VMR-2 MOA Second Focal Plane Illuminated Center Dot |
| Length, in | 10.1" |
| Weight, oz | 21.5 |
