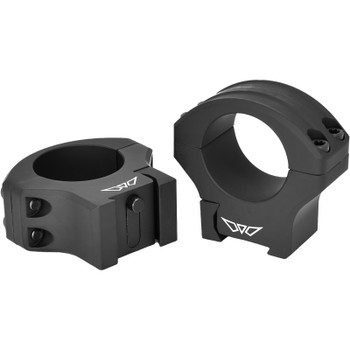

WARNE 30mm Tikka Fixed PA Medium Matte Rings (14TM)

Tikka scope rings for Tikka 3TX, 3T, and 695. Tikka Dovetail Simplicity! Tikka rifles have a grooved receiver that allows for a dovetail ring to mount directly to it, negating the need for a base. Warne's Maxima Tikka rings are a solid steel, vertically split ring that handle even the most punishing recoil, or large, heavy scopes. Since each firearm manufacturer has their own proprietary mounting rail design, each ring model must be machined to exacting tolerances for proper fit and function. Because of this, the Warne Tikka Rings are able to fit right onto the receiver's dovetail with no need for a mounting base. The Tikka Fixed Rings utilize 4 T-15 Torx style socket cap screws for secure and permanent optics mounting and also feature a redesigned recoil pin to provide a stronger bearing surface for higher recoiling rifles.

Warne Maxima Tikka rings from Warne Scope Mounts offers outstanding performance built for your Tikka model.

Tikka's innovative receiver design includes dovetail grooves, meaning an owner doesn't have to worry about equipping a scope base. That means using Warne Maxima Tikka rings gives you plenty of strength without a heavy weight. Made with premium materials, these 14TM 30mm scope rings feature a medium height and a vertical split. Their redesigned recoil pins offer a stronger bearing surface for rifles with stronger recoil.

Installation Instructions

Always verify that your firearm is UN-LOADED before performing any service on it. Warne recommends that you loosely assemble rings and scope onto firearm prior to final mounting to verify eye relief and ring spacing.

• Remove the 4 screws from both rings.
• Place the scope in the ring halves and re-insert recoil key (CZ & Ruger rings do not have specific recoil keys and utilize an integrated recoil management system)
• Start all 4 screws on both rings and tighten only the bottom screws to 25in/lb* max.
• Place rings onto the bases with the recoil keys in the slots and push each ring towards the muzzle to seat the recoil key
• Adjust eye relief and level the reticle and tighten only the bottom screws to 25in/lb* max.
• Once both are correct, tighten the top screws on both rings to scope manufacturers’ recommended torque rating**, maximum of 25 in/lb.

*Torque Spec are for dry threads, DO NOT USE THREAD-LOCKER COMPOUND

**Many scope manufacturers’ have established specific torque ratings for their scope and you must follow their recommended torque.

IMPORTANT: NEVER OVER TIGHTEN ANY BASE OR RING SCREW. NEVER ATTACH A SCOPE IF THE OBJECTIVE TOUCHES THE BARREL OR CAUSES INTERFERENCE WITH THE BOLT, SAFETY OR CYCLING OF THE ACTION. ALWAYS FOLLOW THE FIREARM OR SCOPE MANUFACTURERS’ RECOMMENDED TORQUE SPECIFICATIONS. YOU ARE RESPONSIBLE FOR YOUR OWN GUNSMITHING METHODS.
