- Holographic sight for close-in combat speed and versatility
- Uses laser light to illuminate holographic red reticle projected on target plane
- Improves target acquisition, boosts accuracy, and increases control
- Rugged aluminum hood assembly; knobbed, tool-free mounting bolt

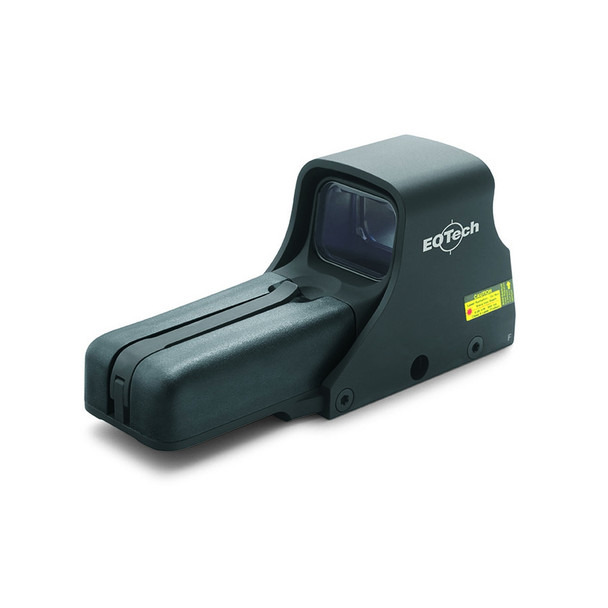

The EOTECH 512 Holographic Weapon Sight, 65 MOA Ring/1 MOA Dot Reticle, AA Battery (512.A65/1) is the most popular model HWS. This tactical optic is perfect for agencies that want the best in CQB speed and versatility, without the need for night vision compatibility.
This EOTech Holographic Weapon Sight (HWS) is the 1st electro-optic sighting system to apply holographic technology to small and medium-sized weapon platforms. When used in Close Quarters Battle (CQB) environments, this revolutionary weapon optic delivers amazing speed and accuracy gains, uncompromising use of peripheral vision, leaves no muzzle-side optical signature and is packaged in a compact, durable unit.
Now deployed with elite Special Forces and SWAT teams the world over, the EOTech Holosight deliver vastly improved shooting performance for all levels of operators.
The standard reticle is a 65 MOA ring with alignment ticks and a 1 MOA aiming dot. The large, open ring is the key to the lightning quick eye recognition and unmatched target acquisition speed. Alternately, the 1 MOA can be used for precision aiming at distances as far as 500 yards where it only covers 5" of the target scene. The reticle demonstrates its versatility for a host of close quarter and long range engagement scenarios. There is no compromise between speed and precision accuracy.
This model Holographic Weapon Sight mounts to any universal Picatinny mounting rail (supports standard Weaver dovetail) with an integral mounting platform for adaptation to user preferred eye relief.
The 512 Holographic Weapon Sight has been designed and tested to provide consistent, reliable performance, even in the most hostile operating environments. This HWS is waterproof (submersible to 10 feet depth), fogproof, shockproof, and withstands extreme temperature variations.
WARNING: This Holographic Weapon Sight is controlled under the U.S. International Traffic in Arms Regulations (ITAR) and may not be exported without proper authorization by the U.S. Department of State.
Warranty Information
| Operation | |
| Optics | Transmission holography |
| Magnification | 1x |
| Eye Relief | Unlimited |
| Size (L x W x H), in | 5.6" x 2" x 2.5" |
| Weight, | 11.1 |
| Water Resistant | Submersible to 10 ft (3m) |
| Sealing | Fog resistant internal optics |
| Color/Finish | Non-reflective black |
| Adjustment (per Click), in @ 100yds | 1/2" (0.5 MOA) |
| Adjustment Range | +/- 40 MOA travel |
| Mount | 1" Weaver or MIL-STD 1913 rail |
| Display Window | |
| Optical Surfaces | Anti-Reflection coating on external surfaces |
| Window Dimensions, in. | 1.20" x 0.85" |
| Front Window Material | Glass 1/8" (3.17mm) thick |
| Rear Window Material | Laminate 3/16" (4.76mm) thick |
| Field of View 100 yds | 30 yds (28m) at a 3" eye relief |
| Reticle Options | 68 MOA circle/1 MOA aiming dot |
| Electrical | |
| Power Source | Two (2) 1.5V x AA batteries |
| Battery Life | 1,000 hrs (lithium) at nominal setting 12; 600 hrs with AA (alkaline) |
| Brightness Settings | 20 settings with scrolling feature |
| Auto Battery Check Indicator | Flashing reticle upon start-up |
| Auto Shut-down | At 8 hrs- programmable to 4 hrs |
