- Fits all Redding Bushing Dies
- Available in .001" increments from 17 thru 338 calibers
- Steel bushings are heat treated approx. Rc 60-62 and hand polished to reduce sizing effort
- Dimensions: 1/2" O.D x 3/8" long

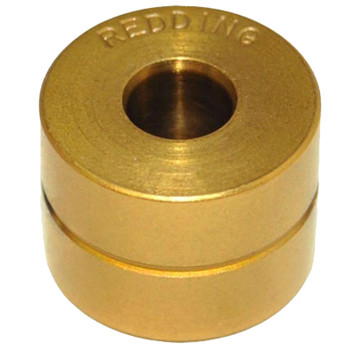

Precision machined Redding Neck Sizing Bushing, available in (2) styles. Both share the same external dimensions (1/2" O.D. x 3/8" long) and freely interchange in all Redding Bushing Style Dies. Bushings are available in .001" size increments throughout the range of .185" thru .368", covering all calibers from .17 to .338 and clearly marked with size I.D. The .292in Titanium Nitride Neck Sizing Bushing (76292) is made from Heat treated steel with the addition of Titanium Nitride surface treatment to further increase the effective surface hardness and reduce sizing friction.
To determine proper Bushing size, measure the outside neck diameter of a loaded cartridge with a precision micrometer, then subtract .001" to .002", to allow for brass spring back and bullet tension. Shellholder and dies sold separately. Made in the USA.
